Trumeter

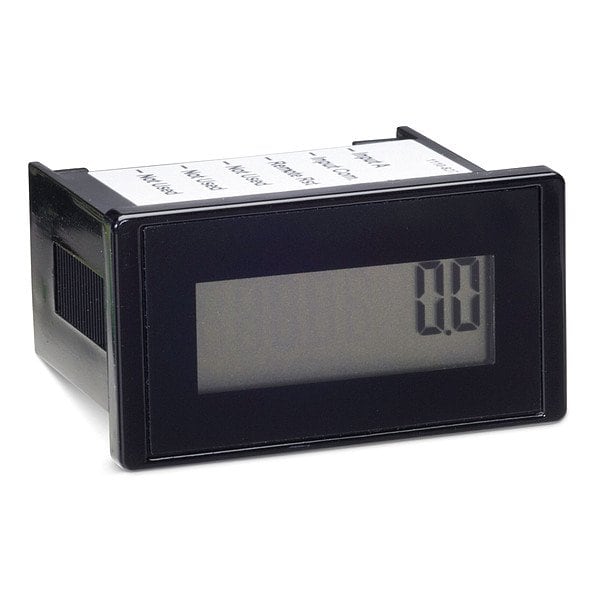

LCD Hour Meter, LCD, Clip, ABS/PC Blend

product price: $41.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Display Type LCD
  • Reset Type Remote
  • Display Units Hours/Tenths
  • Operating Voltage Built-In Battery
  • Number of Digits 8
See all product information

Product Information

Dimensions

Bezel Face Size 2.00 in x 1.10 in
Bezel To Back Length 1.5 in
Length 2 in
Width 1.1 in
Length (Straight Wireway) 2.0 in

Details

Item Hour Meter
Display Type LCD
Reset Type Remote
Display Units Hours/Tenths
Operating Voltage Built-In Battery
Number of Digits 8
Bezel Face Shape Rectangular
Bezel Face Type Flush Mount
Time Range 0 to 9999999.9
Fits 1.77 in X 0.89 in
Elapsed Time To 9,999,999.9
NEMA Rating 12, 4, 4X
Terminal Type Terminal Block
Material of Construction ABS/PC Blend
Hz 50/60 Hz
Input Type Dry Contact
Mounting Method Clip
Temp. Range -4 Degrees to 140 Degrees F
Ambient Temp. Range -4 Degrees to 140 Degrees F
Power Type Battery Powered
Housings 1/32nd DIN, Flush Rectangular
Certifications CE, cUL, IP66, NEMA 4 & 12, ROHS, UL, WEEE
Input High Voltage (20-300V AC or 10-300V DC) <2mA, Low Voltage (3-30V DC) <2mA, Switch Input (no voltage)
Timer Type Hour Meter
Digits 8 Digits
Reset Option Non-Reset, Remote Reset

Description

Hour Meter, Display Type LCD, Time Range 0 to 9999999.9, Bezel Face Size 2.00 in x 1.10 in, Bezel Face Shape Rectangular, Bezel Face Type Flush Mount, Elapsed Time To 9,999,999.9, Hz 50/60 Hz, Number of Digits 8, Display Units Hours/Tenths, Bezel To Back Length 1.5 in, Length 2 in, Width 1.1 in, Ambient Temp. Range -4 Degrees to 140 Degrees F, NEMA Rating 12, 4, 4X, Material of Construction ABS/PC Blend, Input Type Dry Contact, Reset Type Remote, Temp. Range -4 Degrees to 140 Degrees F
