  9. Panel Meter, DC, 2.68x2.68" Cutout, Screw

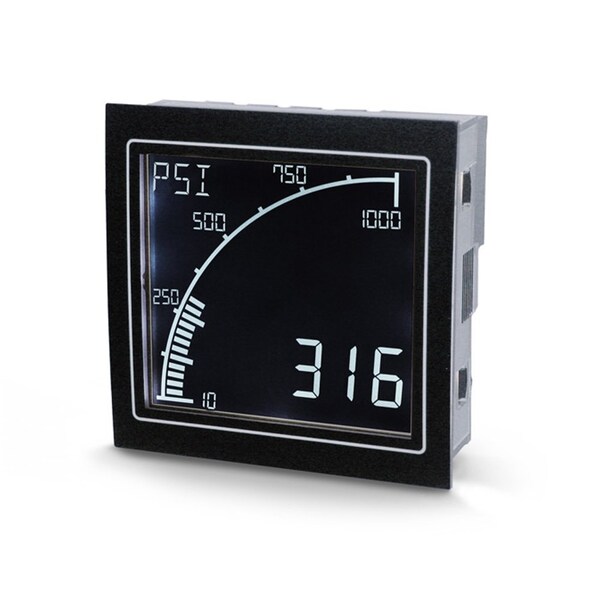

Trumeter Panel Meter, DC, 2.68x2.68" Cutout, Screw APM-PROC-ANO - main

Panel Meter, DC, 2.68x2.68" Cutout, Screw

  • Mfr # APM-PROC-ANO

  • Zoro # G606125050

product price: $132.99
/ea
Free Shipping & Returns

Key Features

Type
DC Current; DC Voltage
Input Range
0 to 10 V DC, 0 to 50 mA
Accuracy
0.1%
Display Span
1,999
Display
LCD
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
APM-PROC-ANO
Zoro #
G606125050
UPC #
-
Country of Origin
Malaysia

Dimensions

Manufacturers Warranty Length
3 yr
Depth
2.09 in
Overall Width
2.83 in
Overall Height
2.83 in
Digit Height - Maximum
0.47 in
Digit Height - Minimum
0.23 in
Cutout Width
2 11/16 in
Cutout Height
2 11/16 in
Overall Depth
2.09 in

Details

Item
Digital Process Meter
Type
DC Current; DC Voltage
Input Range
0 to 10 V DC, 0 to 50 mA
Accuracy
0.1%
Display Span
1,999
Display
LCD
Relays
Not Available
Display Digits
4
Interface
RS-485
Style
APM
Process Connection
No
NEMA Rating
4; 12
Mounting
Panel Cutout
Output
4 to 20 mA AC or DC
Series
APM
Use With
Panels
Includes
Flow and Pressure Transducers, Linear and Non-Linear Sensors, Variable Speed Drives
Power Required
12 to 24 V AC/DC
True RMS
Yes
Excitation
No
Fits
2.68 x 2.68 in Cutout
Standards
CE, CUL, RoHS, UL, UL50
Connector Type
Screw Terminal
Terminal Connection Type
Internal Removable Terminal Blocks
Display Features
High Contrast
AC Magnitude Calculation
True RMS
AC Voltage Input - Minimum
12 V AC
Voltage Display - Minimum
0 V DC
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage
DC Voltage Input - Maximum
24 V DC
Digital Display Screen Color
Green, Red, White
DC Voltage Input - Minimum
12 V DC
Display Span - Maximum
9,999
AC Voltage Input - Maximum
24 V AC
Digital Display Screen Type
LCD
NEMA Enclosure Rating
12, 4
Display Span - Minimum
9
Number of Display Digits
4
Current Display - Minimum
0 mA
Voltage Display - Maximum
10 V DC
Current Display - Maximum
50 mA
Product Type
Digital Process Meter

Description

Panel Meter
