Shop TRUMETER

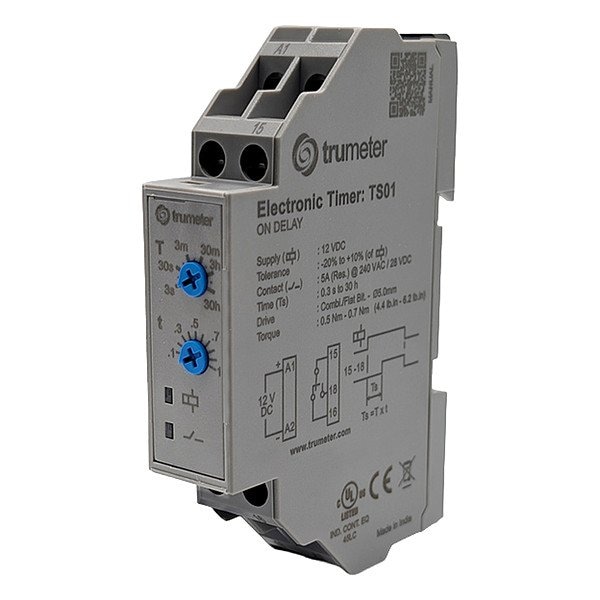

Time Delay Relay, 12V DC

  • Mfr # TS01

  • Zoro # G222838761

product price:
$
26.39
/ea

Key Features

Adjustment Interface
Analog
Contact Form
SPDT
Electrical Operating Durability
100,000
Series
TS Series
Input Voltage
12V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TS01
Zoro #
G222838761
UPC #
5061089360206
Country of Origin
India

Dimensions

Body Height
2.56 in
Body Width
0.69 in
Overall Depth
3.54 in
Mounting Hole Diameter
0.157 in

Details

Adjustment Interface
Analog
Contact Form
SPDT
Electrical Operating Durability
100,000
Series
TS Series
Input Voltage
12V DC
Delay Function
On Delay
Contact Rating (DC)
5 A @ 28V DC
Power Consumption
8 VA
Number of Pins
6
IP Rating
IP20, IP30, IP40
Adjustment Method
Analog Dial
Maximum Operating Temperature
131 Degrees F
Mounting Style
DIN Rail
Weight
2.65 oz
Maximum Time Setting
30 hr
Sealing
Semi-Sealed
Minimum Time Setting
0.3 sec
Current Rating
5 A
Minimum Operating Temperature
14 Degrees F
Frequency
50/60 Hz
Standards
C-UL, CE, UL
Coil Voltage
12V DC
Number of Delay Functions
1
Mechanical Operating Durability
5,000,000
Contact Rating (AC)
5 A @ 240V AC
Item
Time Delay Relay
Base Shape
Square
Electrical Connection
Screw

Description

Time Delay Relay, Adjustment Method Analog Dial, Base Shape Square, Coil Voltage 12V DC, Contact Form SPDT, Contact Rating (AC) 5 A @ 240V AC, Contact Rating (DC) 5 A @ 28V DC, Current Rating 5 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Screw, Flat Pin Width Not Applicable, IP Rating IP20, IP30, IP40, Input Voltage 12V DC, Minimum Time Setting 0.3 sec, Maximum Time Setting 30 hr, Number of Pins 6, Sealing Semi-Sealed, Mounting Style DIN Rail
