Shop All Chain Links
Tsubaki

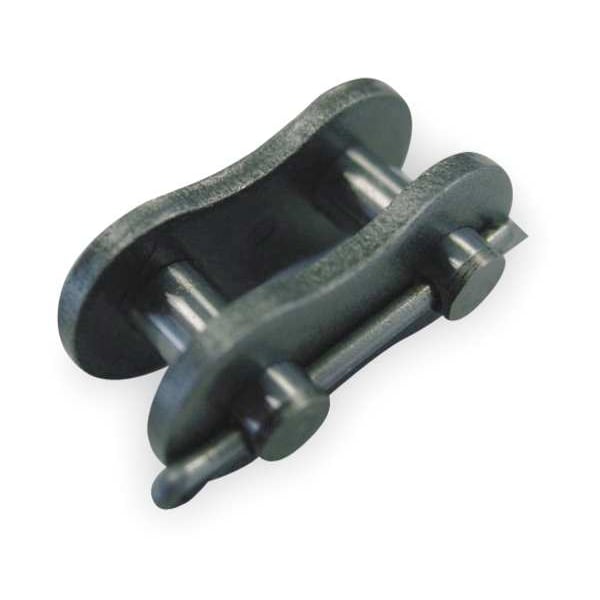

Clevis Connector, Leaf

product price: $6.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Industry Chain Size BL823
  • Chain Link Material Carbon Steel
  • Industry Chain Pitch 1 in
  • Chain Link Overall Width 0.953 in
  • Hole Dia. 0.3768 in
See all product information

Product Information

Dimensions

Industry Chain Size BL823
Chain Link Overall Width 0.953 in
Hole Dia. 0.3768 in
Overall Width (In.) 0.953
Roller Link Plate Height (In.) 0.156
ANSI Chain Size BL823
Inside Pin Dia. 0.375"
Chain Pin Dia. 0.375 in
Hole Dia. (In.) 0.3768
Pin Length (In.) 0.953
Pin Length 0.953 in
Outside Pin Dia. (In.) 0.375
Length (In.) 1.000
Pin Outside Diameter 0.375 in
Chain Overall Width 0.953 in

Details

Chain Link Material Carbon Steel
Industry Chain Pitch 1 in
Lacing 2 x 3
Temp. Range 15 Degrees to 300 Degrees F
Tensile Strength (Lb.) 23,100
Pin Type Riveted
Tensile Strength 23,100 lb/in
Pitch 1 in
Lubrication SAE 10 to SAE 50
Item Clevis Connector
Material Carbon Steel
Type Leaf Chain
Clevis Connector Item Leaf Chain Clevis Connector
Pin Link Plate Thickness (In.) 0.156
Chain Lacing 2 x 3
Pin Link Plate Thickness 0.156 in
Agency Compliance American National Standards Institute (ANSI)
Minimum Operating Temperature 15 Degrees F
Standards ANSI
Chain Number BL823
Maximum Operating Temperature 300 Degrees F

Description

Clevis Connector, Chain Number BL823, Chain Overall Width 0.953 in, Lacing 2 x 3, Material Carbon Steel, Pin Outside Diameter 0.375 in, Pitch 1 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Standards ANSI, Tensile Strength 23,100 lb/in
