Shop TSUBAKI

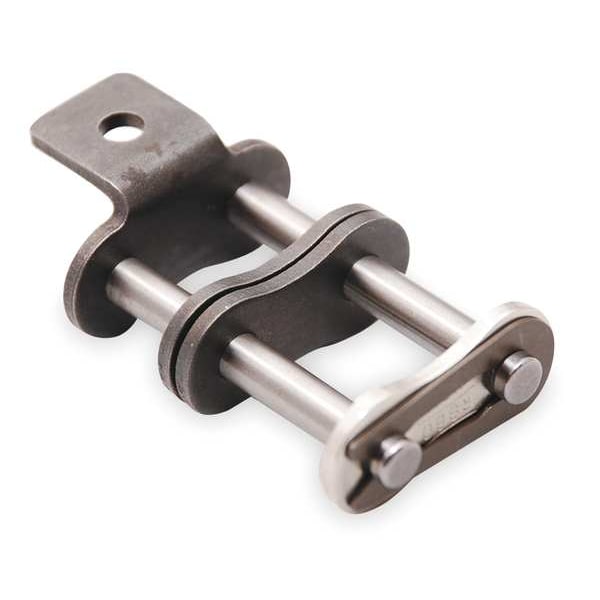

Connecting Link, A-1 Attachment, PK5

  • Mfr # 40-2A1CL

  • Zoro # G2906486

product price:  $43.59
/pk 5, $8.72/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
A-1
Industry Chain Size
40-2
Chain Link Material
Carbon Steel
Industry Chain Pitch
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
40-2A1CL
Zoro #
G2906486
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
40-2
Chain Link Overall Width
1.283 in
Chain Roller Dia.
0.312 in
Pin Length (In.)
1.283
Pin Length
1.283 in
Roller Link Plate Height (In.)
0.472
Length (In.)
0.500
Overall Width (In.)
1.283
Outside Pin Dia. (In.)
0.156
Roller Dia. (In.)
0.312
Width Between Roller Link Plates
0.312 in
ANSI Chain Size
40-2
Pin Link Plate Thickness (In.)
0.060
Outside Pin Dia.
0.156 in
Pin Link Plate Thickness
0.06 in
Roller Link Plate Height
0.472 in
Inside Pin Dia.
0.156 in
Width Between Roller Link Plates (In.)
0.312
Roller Diameter
19/64 in
Plate Height
0.472 in
Extended Pin Diameter
0.156 in
Chain Overall Width
1.283 in
Plate Thickness
0.312 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
A-1
Chain Link Material
Carbon Steel
Industry Chain Pitch
1/2 in
Number of Strands
Double
Rivet End to Center Line (In.)
0.608
Agency Compliance
American National Standards Institute (ANSI)
Tensile Strength
6,375 lb/in
Temp. Range
15 Degrees to 300 Degrees F
Lubrication
SAE 10 to SAE 50
Pin Type
Riveted
Type
A-1 Attachment
Pitch
1/2 in
Item
Attachment Link
Connecting End to Center Line
0.675 in
Max. Allowable Load
1,011 lb
Rivet End to Center Line
0.608 in
Connecting End to Center Line (In.)
0.675
Max. Allowable Load (Lb.)
1011
Material
Steel
Tensile Strength (Lb.)
6375
Finish
Plain
Centerline to Hole Center
0.608 in
Pin Contruction
Riveted Pin
Link Type
Attachment
Attachment Type
Tab
Standards
ANSI
Chain Number
40
Maximum Operating Temperature
300 Degrees F
Minimum Operating Temperature
15 Degrees F
Attachment Number
A-1
Centerline to Attachment End
0.675 in
Number of Tab Holes
2

Description

Attachment Link, Attachment Number A-1, Attachment Type Tab, Material Steel, Chain Overall Width 1.283 in, Chain Number 40, Roller Diameter 19/64 in, Finish Plain, Pitch 1/2 in, Link Type Attachment, Centerline to Attachment End 0.675 in, Centerline to Hole Center 0.608 in, Extended Pin Diameter 0.156 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 2, Pin Contruction Riveted Pin, Plate Height 0.472 in
