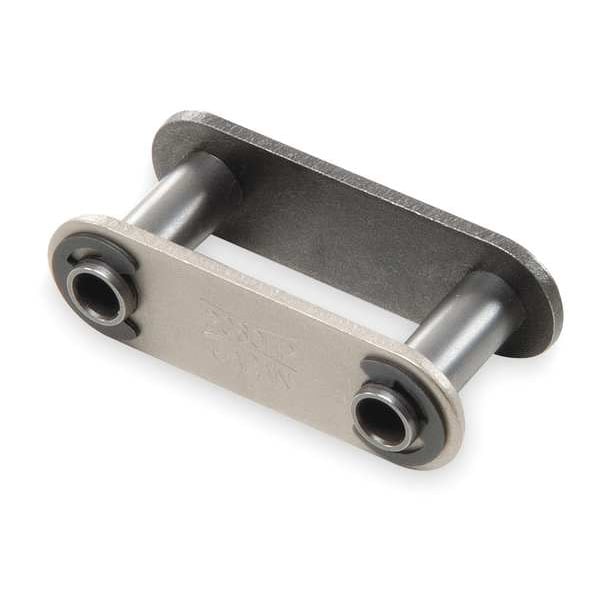

Tsubaki Connecting Link, Double Pitch Hollow Pin C2080HPCL - main

Connecting Link, Double Pitch Hollow Pin

  • Mfr # C2080HPCL

  • Zoro # G2185714

product price:  $24.99
/ea

Key Features

Roller Chain Link Item
Connecting Link
Roller Chain Link Type
Hollow Pin Conveyor
Industry Chain Size
C2080
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C2080HPCL
Zoro #
G2185714
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2080
Chain Link Overall Width
1.341 in
Length (In.)
2.000
Outside Pin Dia. (In.)
0.448
Outside Pin Dia.
0.448 in
Pin Link Plate Thickness (In.)
0.906
Overall Width (In.)
1.341
Width Between Roller Link Plates
0.625 in
ANSI Chain Size
C2080H
Pin Length (In.)
1.341
Bushing Dia. (In.)
0.625
Pin Link Plate Thickness
0.906 in
Roller Link Plate Height (In.)
0.906
Bushing Dia.
0.625 in
Width Between Roller Link Plates (In.)
0.625
Inside Pin Dia.
0.448 in
Roller Link Plate Height
0.906 in
Pin Length
1.341 in
Plate Height
29/32 in
Pin Outside Diameter
29/64 in
Plate Thickness
0.125 in
Inside Width
5/8 in
Chain Overall Width
1 11/32 in

Details

Roller Chain Link Item
Connecting Link
Roller Chain Link Type
Hollow Pin Conveyor
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
Number of Strands
1
Pitch
2 in
Item
Connecting Link
Pin Type
Cottered
Tensile Strength (Lb.)
5950
Agency Compliance
American National Standards Institute (ANSI)
Connecting End to Center Line
0.701 in
Max. Allowable Load (Lb.)
1720
Lubrication
SAE 10 to SAE 50
Max. Allowable Load
1,720 lb
Connecting End to Center Line (In.)
0.701
Tensile Strength
10,800 lbf
Temp. Range
15 Degrees to 300 Degrees F
Type
Double Pitch Hollow Pin
Material
Steel
Rivet End to Center Line (In.)
0.640
Rivet End to Center Line
0.64 in
Pin Contruction
Cottered Pin
Link Type
Connecting Link
Chain Construction
Cottered Pin
Pitch Type
Double Pitch
Maximum Operating Temperature
300 Degrees F
Heavy Series
Yes
Roller Chain Standard
ANSI
Standards
ANSI
Chain Number
C2080H
Minimum Operating Temperature
15 Degrees F
Working Load Limit
1,720 lb

Description

Connecting Link, Chain Construction Cottered Pin, Material Steel, Chain Overall Width 1 11/32 in, Chain Number C2080, Pitch 2 in, Link Type Connecting, Number of Strands 1, Heavy Series Yes, Inside Width 5/8 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Pin Contruction Cottered Pin, Pin Outside Diameter 29/64 in, Pitch Type Double Pitch, Plate Height 29/32 in, Plate Thickness 0.125 in, Roller Chain Standard ANSI
