Shop TSUBAKI

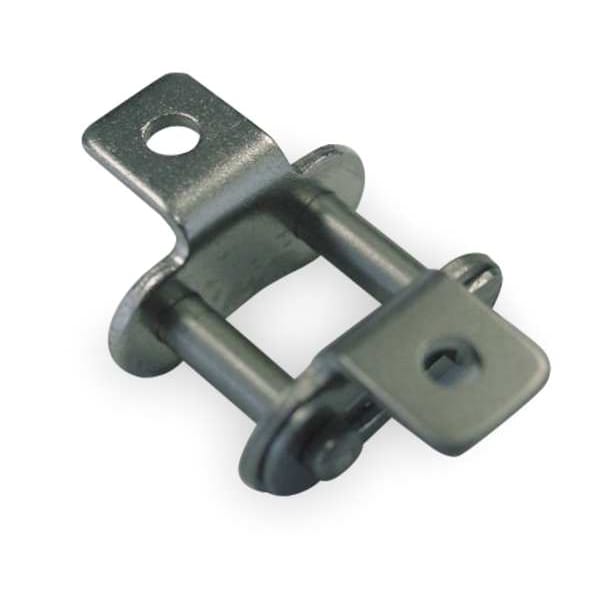

Connecting Link, K-1 Attachment, PK5

  • Mfr # 50NPK1CL

  • Zoro # G2988964

product price:  $63.29
/pk 5, $12.66/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
K-1
Industry Chain Size
50
Chain Link Material
Nickel Plated Steel
Industry Chain Pitch
5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
50NPK1CL
Zoro #
G2988964
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
50
Chain Link Overall Width
0.878 in
Chain Roller Dia.
0.4 in
Outside Pin Dia.
0.2 in
ANSI Chain Size
50NP
Inside Pin Dia.
0.2 in
Width Between Roller Link Plates (In.)
0.375
Width Between Roller Link Plates
0.375 in
Pin Length (In.)
0.878
Overall Width (In.)
0.878
Outside Pin Dia. (In.)
0.200
Roller Link Plate Height
0.591 in
Roller Dia. (In.)
0.400
Roller Link Plate Height (In.)
0.591
Pin Length
0.878 in
Pin Link Plate Thickness
0.08 in
Length (In.)
0.625
Pin Link Plate Thickness (In.)
0.080
Plate Thickness
0.375 in
Extended Pin Diameter
0.2 in
Plate Height
0.591 in
Chain Overall Width
0.878 in
Roller Diameter
25/64 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
K-1
Chain Link Material
Nickel Plated Steel
Industry Chain Pitch
5/8 in
Number of Strands
Single
Material
Steel
Tensile Strength (Lb.)
6170
Agency Compliance
American National Standards Institute (ANSI)
Connecting End to Center Line
0.472 in
Max. Allowable Load (Lb.)
970
Item
Attachment Link
Type
K-1 Attachment
Connecting End to Center Line (In.)
0.472
Rivet End to Center Line (In.)
0.406
Pin Type
Riveted
Rivet End to Center Line
0.406 in
Temp. Range
14 Degrees to 302 Degrees F
Lubrication
SAE 10 to SAE 50
Pitch
5/8 in
Max. Allowable Load
970 lb
Tensile Strength
6,170 lb/in
Finish
Nickel Plated
Attachment Number
K-1
Maximum Operating Temperature
302 Degrees F
Centerline to Attachment End
0.472 in
Minimum Operating Temperature
14 Degrees F
Centerline to Hole Center
0.406 in
Standards
ANSI
Chain Number
50
Link Type
Attachment
Number of Tab Holes
1
Pin Contruction
Riveted Pin
Attachment Type
Tab

Description

Attachment Link, Attachment Number K-1, Attachment Type Tab, Material Steel, Chain Overall Width 0.878 in, Chain Number 50, Roller Diameter 25/64 in, Finish Nickel Plated, Pitch 5/8 in, Link Type Attachment, Centerline to Attachment End 0.472 in, Centerline to Hole Center 0.406 in, Extended Pin Diameter 0.2 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 302 Degrees F, Minimum Operating Temperature 14 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
