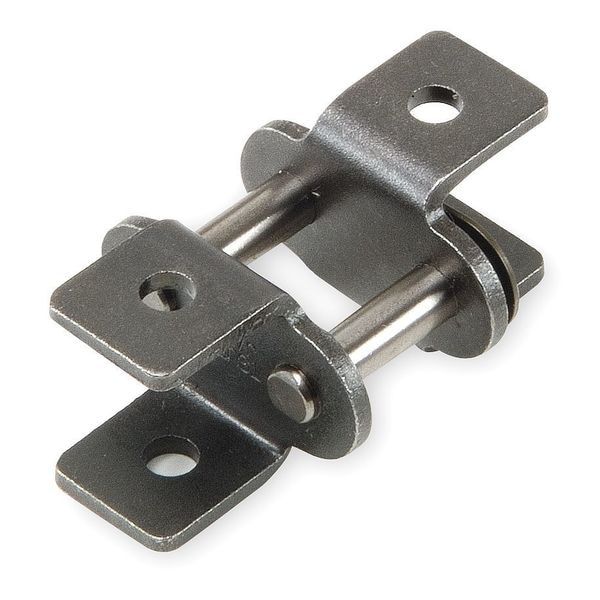

Shop TSUBAKI

Connecting Link, KK-1 Attachment, PK5

  • Mfr # 40KK1CL

  • Zoro # G1948554

product price:
$
62.99
/pk of 5, $12.60/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
KK-1
Industry Chain Size
40
Chain Link Material
Carbon Steel
Industry Chain Pitch
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
40KK1CL
Zoro #
G1948554
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
40
Chain Link Overall Width
0.717 in
Chain Roller Dia.
0.312 in
Roller Link Plate Height (In.)
0.472
Pin Length (In.)
0.717
Outside Pin Dia.
0.156 in
Inside Pin Dia.
0.156 in
Pin Link Plate Thickness (In.)
0.060
Length (In.)
0.500
Width Between Roller Link Plates
0.312 in
Outside Pin Dia. (In.)
0.156
Pin Link Plate Thickness
0.06 in
Overall Width (In.)
0.717
Width Between Roller Link Plates (In.)
0.312
Roller Link Plate Height
0.472 in
ANSI Chain Size
40
Pin Length
0.717 in
Roller Dia. (In.)
0.312
Roller Diameter
19/64 in
Plate Height
0.472 in
Chain Overall Width
0.717 in
Plate Thickness
0.312 in
Extended Pin Diameter
0.156 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
KK-1
Chain Link Material
Carbon Steel
Industry Chain Pitch
1/2 in
Number of Strands
Single
Type
KK-1 Attachment
Max. Allowable Load
595 lb
Pitch
1/2 in
Material
Steel
Rivet End to Center Line
0.325 in
Agency Compliance
American National Standards Institute (ANSI)
Item
Attachment Link
Max. Allowable Load (Lb.)
595
Lubrication
SAE 10 to SAE 50
Tensile Strength
3,750 lb/in
Connecting End to Center Line (In.)
0.392
Connecting End to Center Line
0.392 in
Rivet End to Center Line (In.)
0.325
Tensile Strength (Lb.)
3750
Temp. Range
14 Degrees to 140 Degrees F
Pin Type
Riveted
Finish
Plain
Maximum Operating Temperature
140 Degrees F
Centerline to Hole Center
0.325 in
Number of Tab Holes
1
Centerline to Attachment End
0.392 in
Minimum Operating Temperature
14 Degrees F
Attachment Type
Tab
Link Type
Attachment
Attachment Number
KK-1
Pin Contruction
Riveted Pin
Standards
ANSI
Chain Number
40

Description

Attachment Link, Attachment Number KK-1, Attachment Type Tab, Material Steel, Chain Overall Width 0.717 in, Chain Number 40, Roller Diameter 19/64 in, Finish Plain, Pitch 1/2 in, Link Type Attachment, Centerline to Attachment End 0.392 in, Centerline to Hole Center 0.325 in, Extended Pin Diameter 0.156 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin, Plate Height 0.472 in
