Shop TSUBAKI

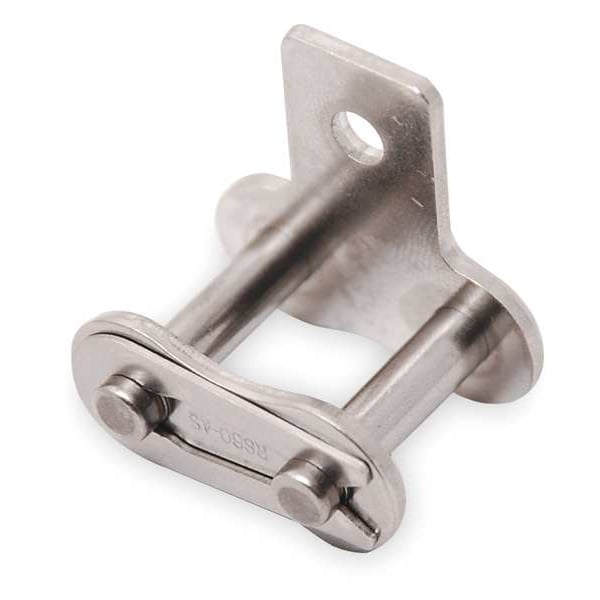

Connecting Link, SA-1 Attachment, PK5

  • Mfr # 35ASSA1CL

  • Zoro # G1611504

product price:  $71.19
/pk 5, $14.24/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
SA-1
Industry Chain Size
35
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
35ASSA1CL
Zoro #
G1611504
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
35
Chain Link Overall Width
0.5 in
Outside Pin Dia. (In.)
0.141
Overall Width (In.)
0.500
Width Between Roller Link Plates
0.188 in
Roller Link Plate Height (In.)
0.354
Roller Link Plate Height
0.354 in
Pin Length (In.)
0.500
Outside Pin Dia.
0.141 in
Width Between Roller Link Plates (In.)
0.188
ANSI Chain Size
35AS
Length (In.)
0.375
Inside Pin Dia.
0.141 in
Pin Link Plate Thickness (In.)
0.050
Pin Length
0.5 in
Pin Link Plate Thickness
0.05 in
Extended Pin Diameter
0.141 in
Chain Overall Width
0.5 in
Plate Thickness
0.188 in
Plate Height
0.354 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
SA-1
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
3/8 in
Number of Strands
Single
Pin Type
Riveted
Connecting End to Center Line (In.)
0.270
Lubrication
SAE 10 to SAE 50
Rivet End to Center Line
0.23 in
Max. Allowable Load (Lb.)
60
Material
Stainless Steel
Max. Allowable Load
60 lb
Connecting End to Center Line
0.27 in
Agency Compliance
American National Standards Institute (ANSI)
Rivet End to Center Line (In.)
0.230
Pitch
3/8 in
Item
Attachment Link
Type
SA-1 Attachment
Temp. Range
-40 Degrees to 750 Degrees F
Finish
Plain
Attachment Type
Tab
Material Grade
600
Maximum Operating Temperature
750 Degrees F
Link Type
Attachment
Chain Number
35
Number of Tab Holes
1
Standards
ANSI
Centerline to Hole Center
0.23 in
Centerline to Attachment End
0.27 in
Attachment Number
SA-1
Minimum Operating Temperature
-40 Degrees F
Pin Contruction
Riveted Pin

Description

Attachment Link, Attachment Number SA-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 0.5 in, Chain Number 35, Finish Plain, Pitch 3/8 in, Link Type Attachment, Centerline to Attachment End 0.27 in, Centerline to Hole Center 0.23 in, Extended Pin Diameter 0.141 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F, Minimum Operating Temperature -40 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
