Shop TSUBAKI

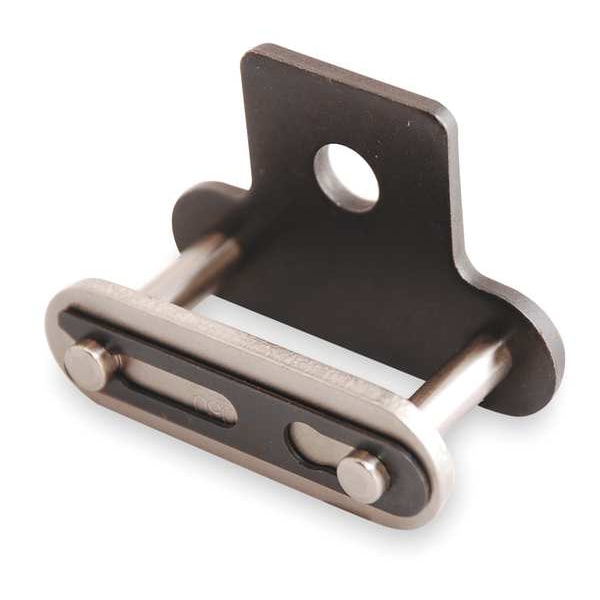

Connecting Link, SA-1 Attachment, PK5

  • Mfr # 60LSA1CL

  • Zoro # G0680093

product price:  $64.79
/pk 5, $12.96/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
SA-1 Lube Free
Industry Chain Size
60
Chain Link Material
Carbon Steel
Industry Chain Pitch
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
60LSA1CL
Zoro #
G0680093
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
60
Chain Link Overall Width
1.087 in
Chain Roller Dia.
0.469 in
Width Between Roller Link Plates
0.5 in
Pin Length (In.)
1.087
Outside Pin Dia. (In.)
0.234
Roller Dia. (In.)
0.469
Outside Pin Dia.
0.234 in
Pin Length
1.087 in
Pin Link Plate Thickness
0.094 in
Inside Pin Dia.
0.234 in
Roller Link Plate Height (In.)
0.713
Overall Width (In.)
1.087
ANSI Chain Size
60L
Pin Link Plate Thickness (In.)
0.094
Width Between Roller Link Plates (In.)
0.500
Roller Link Plate Height
0.713 in
Length (In.)
0.750
Roller Diameter
15/32 in
Plate Height
0.713 in
Chain Overall Width
1.087 in
Plate Thickness
0.5 in
Extended Pin Diameter
0.234 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
SA-1 Lube Free
Chain Link Material
Carbon Steel
Industry Chain Pitch
3/4 in
Number of Strands
Single
Max. Allowable Load (Lb.)
1980
Tensile Strength (Lb.)
9920
Connecting End to Center Line
0.581 in
Lubrication
Self Lube
Material
Steel
Type
SA-1 Attachment
Agency Compliance
American National Standards Institute (ANSI)
Rivet End to Center Line
0.506 in
Rivet End to Center Line (In.)
0.506
Finish
Black Oxide
Item
Attachment Link
Connecting End to Center Line (In.)
0.581
Tensile Strength
9,920 lb/in
Max. Allowable Load
1,980 lb
Temp. Range
14 Degrees to 302 Degrees F
Pin Type
Riveted
Pitch
3/4 in
Attachment Number
SA-1
Pin Contruction
Riveted Pin
Maximum Operating Temperature
302 Degrees F
Standards
ANSI
Attachment Type
Tab
Number of Tab Holes
1
Minimum Operating Temperature
14 Degrees F
Chain Number
60
Link Type
Attachment
Centerline to Attachment End
0.581 in
Centerline to Hole Center
0.506 in

Description

Attachment Link, Attachment Number SA-1, Attachment Type Tab, Material Steel, Chain Overall Width 1.087 in, Chain Number 60, Roller Diameter 15/32 in, Finish Black Oxide, Pitch 3/4 in, Link Type Attachment, Centerline to Attachment End 0.581 in, Centerline to Hole Center 0.506 in, Extended Pin Diameter 0.234 in, Lubrication Self Lube, Maximum Operating Temperature 302 Degrees F, Minimum Operating Temperature 14 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin, Plate Height 0.713 in
