Shop TSUBAKI

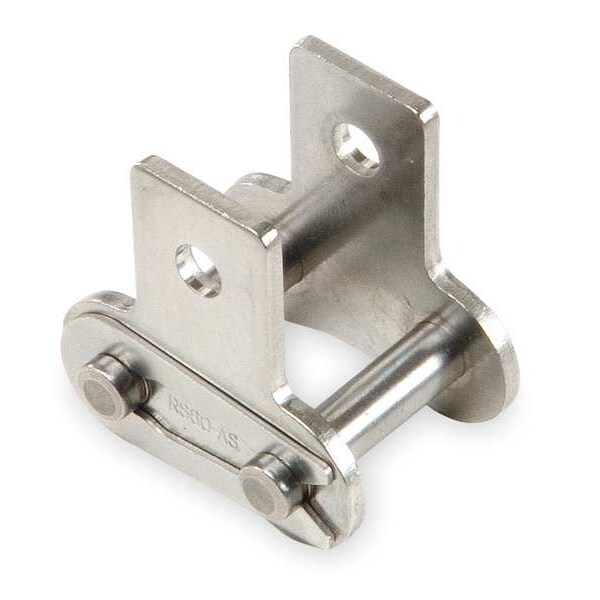

Connecting Link, SK-1 Attachment, PK5

  • Mfr # 50ASSK1CL

  • Zoro # G1788105

product price:  $110.99
/pk 5, $22.20/ea
Free Shipping & Returns

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
SK-1
Industry Chain Size
50
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
50ASSK1CL
Zoro #
G1788105
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
50
Chain Link Overall Width
0.878 in
Chain Roller Dia.
0.4 in
Pin Length (In.)
0.878
Outside Pin Dia. (In.)
0.200
ANSI Chain Size
50AS
Inside Pin Dia.
0.2 in
Length (In.)
0.625
Width Between Roller Link Plates
0.375 in
Pin Link Plate Thickness
0.08 in
Roller Link Plate Height (In.)
0.591
Width Between Roller Link Plates (In.)
0.375
Overall Width (In.)
0.878
Roller Link Plate Height
0.591 in
Roller Dia. (In.)
0.400
Outside Pin Dia.
0.2 in
Pin Link Plate Thickness (In.)
0.080
Pin Length
0.878 in
Plate Thickness
0.375 in
Plate Height
0.591 in
Extended Pin Diameter
0.2 in
Chain Overall Width
0.878 in
Roller Diameter
25/64 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
SK-1
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
5/8 in
Number of Strands
Single
Item
Attachment Link
Lubrication
SAE 10 to SAE 50
Material
Stainless Steel
Connecting End to Center Line
0.472 in
Pin Type
Riveted
Pitch
5/8 in
Max. Allowable Load
231 lb
Temp. Range
-40 Degrees to 750 Degrees F
Rivet End to Center Line (In.)
0.406
Connecting End to Center Line (In.)
0.472
Type
SK-1 Attachment
Agency Compliance
American National Standards Institute (ANSI)
Rivet End to Center Line
0.406 in
Max. Allowable Load (Lb.)
231
Finish
Plain
Maximum Operating Temperature
750 Degrees F
Centerline to Hole Center
0.406 in
Minimum Operating Temperature
-40 Degrees F
Number of Tab Holes
1
Attachment Number
SK-1
Material Grade
600
Pin Contruction
Riveted Pin
Link Type
Attachment
Attachment Type
Tab
Standards
ANSI
Chain Number
50
Centerline to Attachment End
0.472 in

Description

Attachment Link, Attachment Number SK-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 0.878 in, Chain Number 50, Roller Diameter 25/64 in, Finish Plain, Pitch 5/8 in, Link Type Attachment, Centerline to Attachment End 0.472 in, Centerline to Hole Center 0.406 in, Extended Pin Diameter 0.2 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F, Minimum Operating Temperature -40 Degrees F, Number of Tab Holes 1
