Shop TSUBAKI

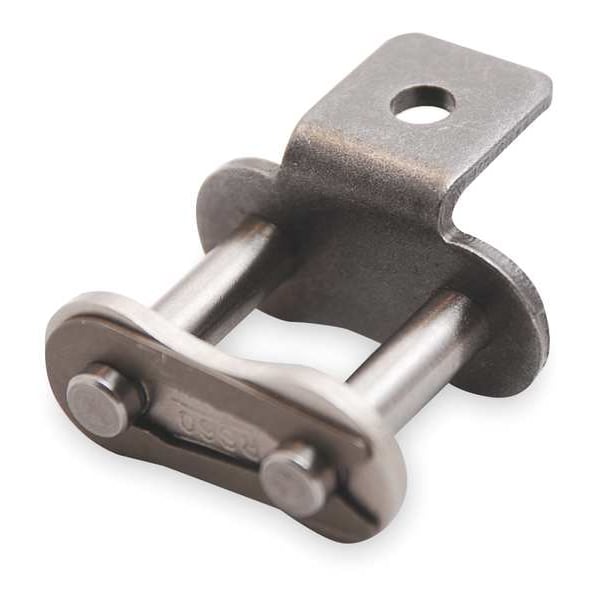

Connecting Roller Link, A-1 Attachment

  • Mfr # 80A1CL

  • Zoro # G0521114

product price:  $8.15
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
A-1
Industry Chain Size
80
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
80A1CL
Zoro #
G0521114
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
80
Chain Link Overall Width
1.398 in
Chain Roller Dia.
0.625 in
ANSI Chain Size
80
Outside Pin Dia. (In.)
0.312
Pin Link Plate Thickness
0.125 in
Width Between Roller Link Plates (In.)
0.625
Roller Dia. (In.)
0.625
Roller Link Plate Height (In.)
0.949
Width Between Roller Link Plates
0.625 in
Pin Link Plate Thickness (In.)
0.125
Pin Length
1.398 in
Pin Length (In.)
1.398
Inside Pin Dia.
0.312 in
Outside Pin Dia.
0.312 in
Overall Width (In.)
1.398
Length (In.)
1.000
Roller Link Plate Height
0.949 in
Plate Thickness
0.625 in
Plate Height
0.949 in
Extended Pin Diameter
0.312 in
Chain Overall Width
1.398 in
Roller Diameter
5/8 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
A-1
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 in
Number of Strands
Single
Tensile Strength (Lb.)
15,400
Max. Allowable Load
2,400 lb
Connecting End to Center Line (In.)
0.758
Item
Attachment Link
Connecting End to Center Line
0.758 in
Tensile Strength
15,400 lb/in
Temp. Range
15 Degrees to 300 Degrees F
Pin Type
Cottered
Max. Allowable Load (Lb.)
2400
Material
Steel
Pitch
1 in
Rivet End to Center Line (In.)
0.640
Agency Compliance
American National Standards Institute (ANSI)
Type
A-1 Attachment
Lubrication
SAE 10 to SAE 50
Rivet End to Center Line
0.64 in
Finish
Plain
Attachment Number
A-1
Link Type
Attachment
Number of Tab Holes
1
Pin Contruction
Cottered Pin
Minimum Operating Temperature
15 Degrees F
Chain Number
80
Centerline to Hole Center
0.64 in
Attachment Type
Tab
Maximum Operating Temperature
300 Degrees F
Standards
ANSI
Centerline to Attachment End
0.758 in

Description

Attachment Link, Attachment Number A-1, Attachment Type Tab, Material Steel, Chain Overall Width 1.398 in, Chain Number 80, Roller Diameter 5/8 in, Finish Plain, Pitch 1 in, Link Type Attachment, Centerline to Attachment End 0.758 in, Centerline to Hole Center 0.64 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Cottered Pin, Plate Height 0.949 in
