Shop TSUBAKI

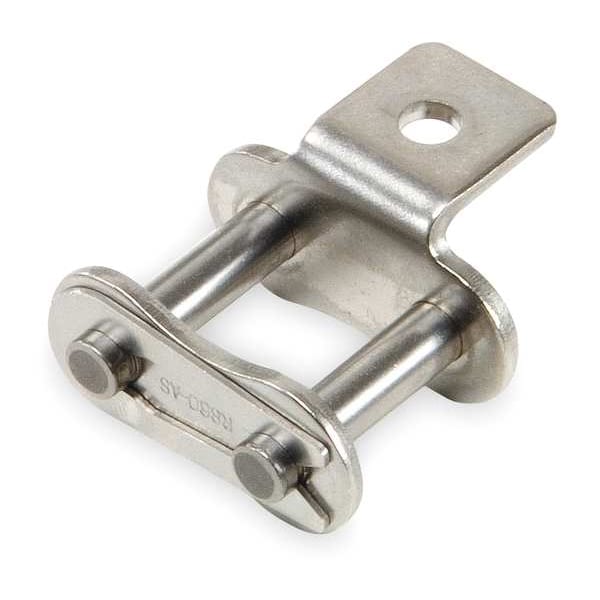

Connecting Roller Link, A-1 Attachment

  • Mfr # 80ASA1CL

  • Zoro # G3018461

product price:  $33.69
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
A-1
Industry Chain Size
80
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
80ASA1CL
Zoro #
G3018461
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
80
Chain Link Overall Width
1.398 in
Chain Roller Dia.
0.625 in
Roller Dia. (In.)
0.625
Roller Link Plate Height
0.949 in
Pin Length (In.)
1.398
Inside Pin Dia.
0.312 in
Outside Pin Dia.
0.312 in
Roller Link Plate Height (In.)
0.949
Pin Length
1.398 in
Outside Pin Dia. (In.)
0.312
ANSI Chain Size
80AS
Pin Link Plate Thickness (In.)
0.125
Width Between Roller Link Plates
0.625 in
Length (In.)
1.000
Overall Width (In.)
1.398
Pin Link Plate Thickness
0.125 in
Width Between Roller Link Plates (In.)
0.625
Tab Hole Diameter
0.268 in
Roller Diameter
5/8 in
Inside Width
5/8 in
Tab Width
0.752 in
Chain Overall Width
1.398 in
Plate Height
0.949 in
Plate Thickness
0.125 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
A-1
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 in
Number of Strands
Single
Rivet End to Center Line (In.)
0.640
Pitch
1 in
Pin Type
Cottered
Max. Allowable Load
596 lb
Item
Attachment Link
Agency Compliance
American National Standards Institute (ANSI)
Type
A-1 Attachment
Connecting End to Center Line
0.758 in
Max. Allowable Load (Lb.)
596
Temp. Range
-40 Degrees to 750 Degrees F
Rivet End to Center Line
0.64 in
Lubrication
SAE 10 to SAE 50
Connecting End to Center Line (In.)
0.758
Material
Stainless Steel
Finish
Plain
Working Load Limit
2,400 lb
Minimum Operating Temperature
-40 Degrees F
Attachment Location
One Side
Maximum Operating Temperature
750 Degrees F
Attachment Type
Tab
Material Grade
600
Pin Contruction
Cottered Pin
Tab Orientation
Horizontal Outward
Number of Tab Holes
1
Chain Number
80
Centerline to Attachment End
1.441 in
Standards
ANSI
Features
Greater Fatigue Strength, Higher Horsepower Ratings, Longer Wear Life
Attachment Number
A-1
Link Type
Attachment
Pitch Type
Single Pitch
Heavy Series
No
Centerline to Hole Center
1 in
Chain Construction
Cottered Pin

Description

Attachment Link, Attachment Number A-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 1.398 in, Chain Number 80, Roller Diameter 5/8 in, Finish Plain, Pitch 1 in, Link Type Attachment, Attachment Location One Side, Centerline to Attachment End 1.441 in, Centerline to Hole Center 1 in, Chain Construction Cottered Pin, Extended Pin Diameter Not Applicable, Features Greater Fatigue Strength, Higher Horsepower Ratings, Longer Wear Life, Heavy Series No, Inside Width 5/8 in
