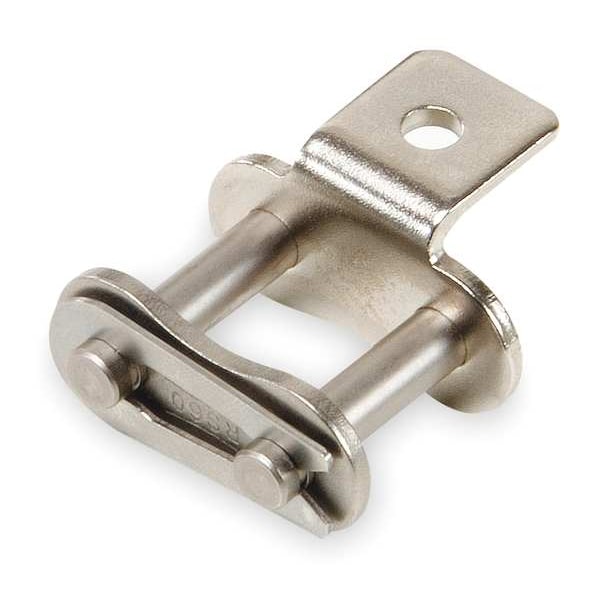

Connecting Roller Link, A-1 Attachment

  • Mfr # 80NPA1CL
  • Zoro # G1730994
product price:
$
13.79
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
A-1
Industry Chain Size
80
Chain Link Material
Nickel Plated Steel
Industry Chain Pitch
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
80NPA1CL
Zoro #
G1730994
UPC #
-
Country of Origin
Japan
Roller Chain Link Item
Attachment Link
Roller Chain Link Type
A-1
Chain Link Material
Nickel Plated Steel
Industry Chain Pitch
1 in
Number of Strands
Single
Rivet End to Center Line
0.64 in
Temp. Range
14 Degrees to 302 Degrees F
Type
A-1 Attachment
Tensile Strength
15,400 lb/in
Material
Steel
Lubrication
SAE 10 to SAE 50
Connecting End to Center Line (In.)
0.758
Max. Allowable Load (Lb.)
2400
Pitch
1 in
Connecting End to Center Line
0.758 in
Agency Compliance
American National Standards Institute (ANSI)
Tensile Strength (Lb.)
15,400
Rivet End to Center Line (In.)
0.640
Item
Attachment Link
Max. Allowable Load
2,400 lb
Pin Type
Cottered
Finish
Nickel Plated
Minimum Operating Temperature
14 Degrees F
Attachment Number
A-1
Number of Tab Holes
1
Centerline to Attachment End
0.758 in
Maximum Operating Temperature
302 Degrees F
Pin Contruction
Cottered Pin
Standards
ANSI
Link Type
Attachment
Centerline to Hole Center
0.64 in
Attachment Type
Tab
Chain Number
80
Shell Material
Steel
Traction Material
Steel

Dimensions

Industry Chain Size
80
Chain Link Overall Width
1.398 in
Chain Roller Dia.
0.625 in
Roller Dia. (In.)
0.625
Outside Pin Dia. (In.)
0.312
Pin Length (In.)
1.398
Pin Link Plate Thickness (In.)
0.125
Length (In.)
1 in
Width Between Roller Link Plates
0.625 in
Roller Link Plate Height (In.)
0.949
Roller Link Plate Height
0.949 in
ANSI Chain Size
80NP
Outside Pin Dia.
0.312 in
Pin Link Plate Thickness
0.125 in
Inside Pin Dia.
0.312 in
Overall Width (In.)
1.398
Width Between Roller Link Plates (In.)
0.625
Pin Length
1.398 in
Plate Height
0.949 in
Extended Pin Diameter
0.312 in
Roller Diameter
5/8 in
Chain Overall Width
1.398 in
Plate Thickness
0.625 in

Description

Attachment Link, Attachment Number A-1, Attachment Type Tab, Material Steel, Chain Overall Width 1.398 in, Chain Number 80, Roller Diameter 5/8 in, Finish Nickel Plated, Pitch 1 in, Link Type Attachment, Centerline to Attachment End 0.758 in, Centerline to Hole Center 0.64 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 302 Degrees F, Minimum Operating Temperature 14 Degrees F, Number of Tab Holes 1, Pin Contruction Cottered Pin
