Shop TSUBAKI

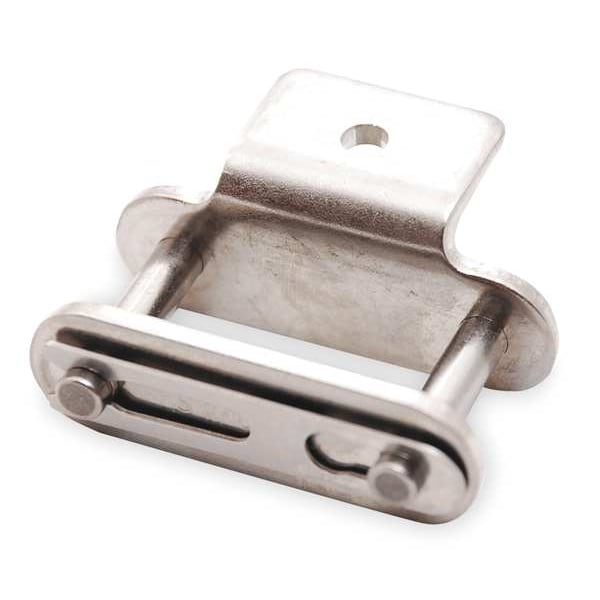

Connecting Roller Link, A-1 Attachment

  • Mfr # C2040ASA1CL

  • Zoro # G1929891

product price:
$
18.89
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
A-1 Conveyor
Industry Chain Size
C2040
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C2040ASA1CL
Zoro #
G1929891
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2040
Chain Link Overall Width
0.717 in
Chain Roller Dia.
0.312 in
Outside Pin Dia.
0.156 in
Length (In.)
1.000
Pin Length (In.)
0.705
Width Between Roller Link Plates
0.312 in
Pin Length
0.705 in
Overall Width (In.)
0.717
Roller Link Plate Height
0.472 in
Roller Dia. (In.)
0.312
Roller Link Plate Height (In.)
0.472
Pin Link Plate Thickness
0.06 in
ANSI Chain Size
C2040AS
Inside Pin Dia.
0.156 in
Width Between Roller Link Plates (In.)
0.312
Outside Pin Dia. (In.)
0.156
Pin Link Plate Thickness (In.)
0.060
Tab Hole Diameter
0.142 in
Roller Diameter
19/64 in
Plate Thickness
0.06 in
Tab Width
0.752 in
Inside Width
19/64 in
Plate Height
0.472 in
Chain Overall Width
0.717 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
A-1 Conveyor
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 in
Number of Strands
Single
Max. Allowable Load
150 lb
Item
Attachment Link
Material
Stainless Steel
Pitch
1 in
Pin Type
Riveted
Lubrication
SAE 10 to SAE 50
Type
A-1 Attachment
Connecting End to Center Line (In.)
0.380
Rivet End to Center Line (In.)
0.325
Connecting End to Center Line
0.38 in
Max. Allowable Load (Lb.)
150
Rivet End to Center Line
0.325 in
Temp. Range
-40 Degrees to 750 Degrees F
Agency Compliance
American National Standards Institute (ANSI)
Finish
Plain
Chain Number
C2040
Pin Contruction
Riveted Pin
Pitch Type
Double Pitch
Centerline to Hole Center
0.5 in
Standards
ANSI
Attachment Number
A-1
Working Load Limit
595 lb
Attachment Location
One Side
Attachment Type
Tab
Material Grade
600
Tab Orientation
Horizontal Outward
Centerline to Attachment End
0.76 in
Maximum Operating Temperature
750 Degrees F
Minimum Operating Temperature
-40 Degrees F
Heavy Series
No
Number of Tab Holes
1
Chain Construction
Riveted Pin
Link Type
Attachment

Description

Attachment Link, Attachment Number A-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 0.717 in, Chain Number C2040, Roller Diameter 19/64 in, Finish Plain, Pitch 1 in, Link Type Attachment, Attachment Location One Side, Centerline to Attachment End 0.76 in, Centerline to Hole Center 0.5 in, Chain Construction Riveted Pin, Extended Pin Diameter Not Applicable, Heavy Series No, Inside Width 19/64 in, Lubrication SAE 10 to SAE 50, Material Grade 600
