Shop TSUBAKI

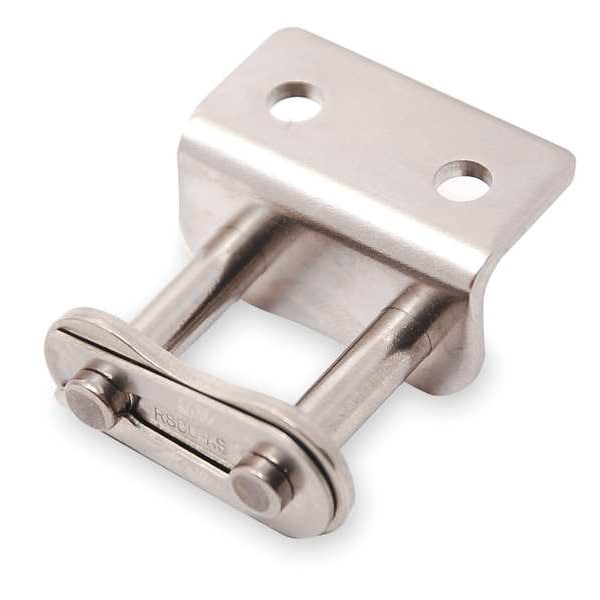

Connecting Roller Link, A-2 Attachment

  • Mfr # 80ASA2CL

  • Zoro # G1127576

product price:  $52.99
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
A-2
Industry Chain Size
80
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
80ASA2CL
Zoro #
G1127576
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
80
Chain Link Overall Width
1.398 in
Chain Roller Dia.
0.625 in
Outside Pin Dia.
0.312 in
Pin Length
1.398 in
ANSI Chain Size
80AS
Pin Link Plate Thickness (In.)
0.125
Width Between Roller Link Plates (In.)
0.625
Length (In.)
1.000
Inside Pin Dia.
0.312 in
Outside Pin Dia. (In.)
0.312
Roller Link Plate Height (In.)
0.949
Roller Dia. (In.)
0.625
Width Between Roller Link Plates
0.625 in
Pin Link Plate Thickness
0.125 in
Pin Length (In.)
1.398
Roller Link Plate Height
0.949 in
Overall Width (In.)
1.398
Chain Overall Width
1.398 in
Extended Pin Diameter
0.312 in
Plate Thickness
0.625 in
Plate Height
0.949 in
Roller Diameter
5/8 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
A-2
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 in
Number of Strands
Single
Type
A-2 Attachment
Agency Compliance
American National Standards Institute (ANSI)
Temp. Range
-40 Degrees to 750 Degrees F
Lubrication
SAE 10 to SAE 50
Rivet End to Center Line (In.)
0.640
Connecting End to Center Line
0.758 in
Pin Type
Cottered
Connecting End to Center Line (In.)
0.758
Item
Attachment Link
Pitch
1 in
Material
Stainless Steel
Rivet End to Center Line
0.64 in
Max. Allowable Load
596 lb
Max. Allowable Load (Lb.)
596
Finish
Plain
Attachment Number
A-2
Material Grade
600
Pin Contruction
Cottered Pin
Link Type
Attachment
Maximum Operating Temperature
750 Degrees F
Minimum Operating Temperature
-40 Degrees F
Standards
ANSI
Number of Tab Holes
1
Chain Number
80
Centerline to Hole Center
0.64 in
Centerline to Attachment End
0.758 in
Attachment Type
Tab

Description

Attachment Link, Attachment Number A-2, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 1.398 in, Chain Number 80, Roller Diameter 5/8 in, Finish Plain, Pitch 1 in, Link Type Attachment, Centerline to Attachment End 0.758 in, Centerline to Hole Center 0.64 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F, Minimum Operating Temperature -40 Degrees F, Number of Tab Holes 1
