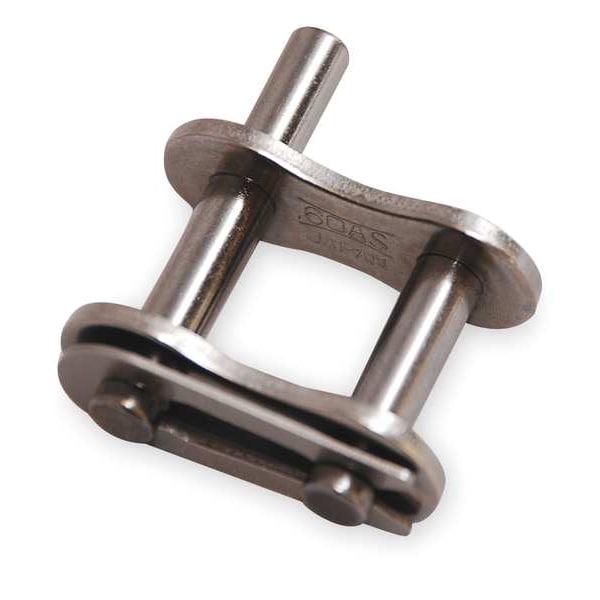

Connecting Roller Link, D-1 Attachment

  • Mfr # 80ASD1CL

  • Zoro # G2590612

product price:
$
45.75
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-1
Industry Chain Size
80
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
80ASD1CL
Zoro #
G2590612
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
80
Chain Link Overall Width
1.398 in
Chain Roller Dia.
0.625 in
Inside Pin Dia.
0.312 in
Outside Pin Dia. (In.)
0.312
Width Between Roller Link Plates (In.)
0.625
Width Between Roller Link Plates
0.625 in
Pin Link Plate Thickness
0.125 in
Outside Pin Dia.
0.312 in
Pin Length (In.)
1.398
Pin Length
1.398 in
Roller Link Plate Height (In.)
0.949
Pin Link Plate Thickness (In.)
0.125
Roller Link Plate Height
0.949 in
Overall Width (In.)
1.398
ANSI Chain Size
80AS
Length (In.)
1.000
Roller Dia. (In.)
0.625
Chain Overall Width
1.398 in
Extended Pin Diameter
0.312 in
Plate Thickness
0.125 in
Plate Height
0.949 in
Roller Diameter
5/8 in
Inside Width
5/8 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-1
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 in
Number of Strands
Single
Rivet End to Center Line
0.64 in
Pitch
1 in
Rivet End to Center Line (In.)
0.640
Item
Attachment Link
Type
D-1 Attachment
Max. Allowable Load (Lb.)
596
Connecting End to Center Line (In.)
0.758
Connecting End to Center Line
0.758 in
Max. Allowable Load
596 lb
Material
Stainless Steel
Pin Type
Cottered
Lubrication
SAE 10 to SAE 50
Temp. Range
-40 Degrees to 750 Degrees F
Agency Compliance
American National Standards Institute (ANSI)
Finish
Plain
Pitch Type
Single Pitch
Attachment Type
Pin
Chain Number
80
Centerline to Attachment End
1.335 in
Heavy Series
No
Minimum Operating Temperature
-40 Degrees F
Standards
ANSI
Number of Pins Per Plate
1
Features
Greater Fatigue Strength, Higher Horsepower Ratings, Longer Wear Life
Link Type
Attachment
Chain Construction
Cottered Pin
Attachment Number
D-1
Working Load Limit
2,400 lb
Pin Projection
0.752 in
Maximum Operating Temperature
750 Degrees F
Material Grade
600
Pin Contruction
Cottered Pin

Description

Attachment Link, Attachment Number D-1, Attachment Type Pin, Material Stainless Steel, Chain Overall Width 1.398 in, Chain Number 80, Roller Diameter 5/8 in, Finish Plain, Pitch 1 in, Link Type Attachment, Centerline to Attachment End 1.335 in, Centerline to Hole Center Not Applicable, Chain Construction Cottered Pin, Extended Pin Diameter 0.312 in, Features Greater Fatigue Strength, Higher Horsepower Ratings, Longer Wear Life, Heavy Series No, Inside Width 5/8 in, Lubrication SAE 10 to SAE 50
