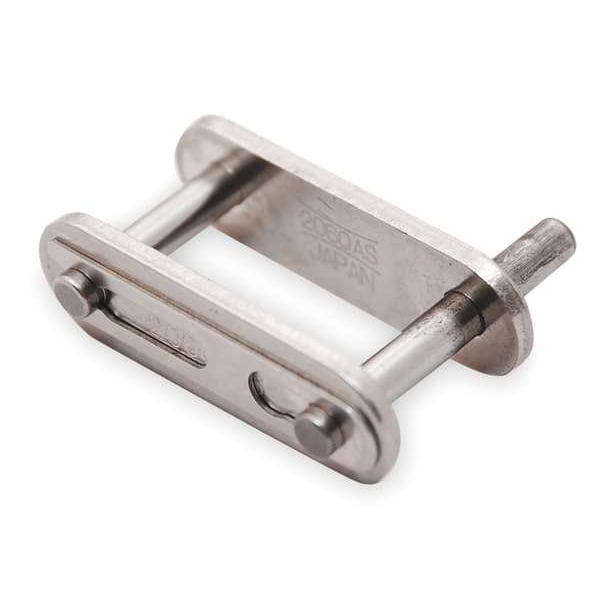

Connecting Roller Link, D-1 Attachment

  • Mfr # C2040ASD1CL

  • Zoro # G1874591

product price:
$
15.99
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-1 Conveyor
Industry Chain Size
C2040
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C2040ASD1CL
Zoro #
G1874591
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2040
Chain Link Overall Width
0.717 in
Chain Roller Dia.
0.312 in
Outside Pin Dia.
0.156 in
Width Between Roller Link Plates (In.)
0.312
Width Between Roller Link Plates
0.312 in
Inside Pin Dia.
0.156 in
Pin Link Plate Thickness (In.)
0.060
Pin Link Plate Thickness
0.06 in
Overall Width (In.)
0.717
Outside Pin Dia. (In.)
0.156
Length (In.)
1.000
Roller Link Plate Height
0.472 in
Roller Link Plate Height (In.)
0.472
Roller Dia. (In.)
0.312
Pin Length
0.705 in
Pin Length (In.)
0.705
ANSI Chain Size
C2040AS
Extended Pin Diameter
0.156 in
Roller Diameter
19/64 in
Inside Width
19/64 in
Plate Thickness
0.06 in
Chain Overall Width
0.717 in
Plate Height
0.472 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-1 Conveyor
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 in
Number of Strands
Single
Type
D-1 Attachment
Max. Allowable Load
150 lb
Lubrication
SAE 10 to SAE 50
Material
Stainless Steel
Connecting End to Center Line (In.)
0.380
Agency Compliance
American National Standards Institute (ANSI)
Rivet End to Center Line (In.)
0.325
Max. Allowable Load (Lb.)
150
Rivet End to Center Line
0.325 in
Connecting End to Center Line
0.38 in
Temp. Range
-40 Degrees to 750 Degrees F
Pitch
1 in
Pin Type
Riveted
Item
Attachment Link
Finish
Plain
Centerline to Attachment End
0.663 in
Working Load Limit
595 lb
Minimum Operating Temperature
-40 Degrees F
Chain Construction
Riveted Pin
Heavy Series
No
Pitch Type
Double Pitch
Pin Contruction
Riveted Pin
Material Grade
600
Standards
ANSI
Attachment Number
D-1
Attachment Type
Pin
Pin Projection
0.374 in
Maximum Operating Temperature
750 Degrees F
Chain Number
C2040
Number of Pins Per Plate
1
Link Type
Attachment

Description

Attachment Link, Attachment Number D-1, Attachment Type Pin, Material Stainless Steel, Chain Overall Width 0.717 in, Chain Number C2040, Roller Diameter 19/64 in, Finish Plain, Pitch 1 in, Link Type Attachment, Centerline to Attachment End 0.663 in, Centerline to Hole Center Not Applicable, Chain Construction Riveted Pin, Extended Pin Diameter 0.156 in, Heavy Series No, Inside Width 19/64 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F
