Shop TSUBAKI

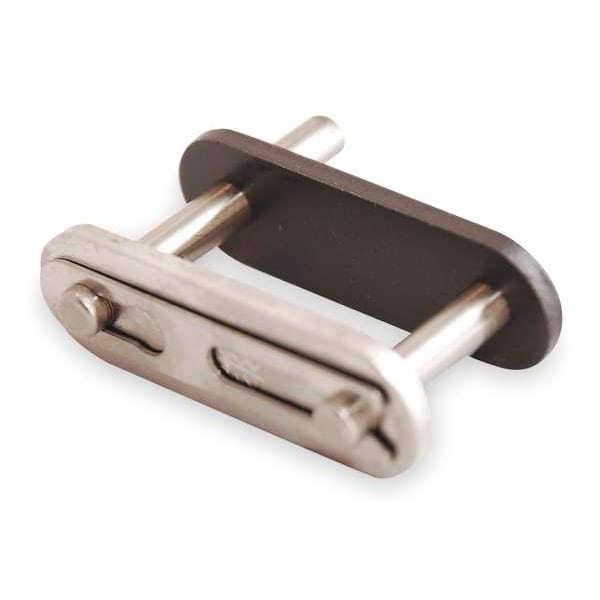

Connecting Roller Link, D-1 Attachment

  • Mfr # C2050LD1CL

  • Zoro # G1112517

product price:  $13.29
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-1 Lube Free Conveyor
Industry Chain Size
C2050
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C2050LD1CL
Zoro #
G1112517
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2050
Chain Link Overall Width
0.878 in
Chain Roller Dia.
0.4 in
Pin Length (In.)
0.875
Width Between Roller Link Plates
0.375 in
Inside Pin Dia.
0.2 in
ANSI Chain Size
C2050L
Width Between Roller Link Plates (In.)
0.375
Pin Length
0.875 in
Roller Link Plate Height (In.)
0.591
Length (In.)
1.250
Outside Pin Dia.
0.2 in
Overall Width (In.)
0.878
Outside Pin Dia. (In.)
0.200
Roller Dia. (In.)
0.400
Roller Link Plate Height
0.591 in
Pin Link Plate Thickness (In.)
0.080
Pin Link Plate Thickness
0.08 in
Plate Height
0.591 in
Chain Overall Width
0.878 in
Plate Thickness
0.375 in
Extended Pin Diameter
0.2 in
Roller Diameter
25/64 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-1 Lube Free Conveyor
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 1/4 in
Number of Strands
Single
Max. Allowable Load
970 lb
Temp. Range
14 Degrees to 302 Degrees F
Lubrication
Self Lube
Max. Allowable Load (Lb.)
970
Pin Type
Riveted
Connecting End to Center Line (In.)
0.469
Rivet End to Center Line
0.406 in
Pitch
1 1/4 in
Finish
Black Oxide
Material
Steel
Connecting End to Center Line
0.469 in
Rivet End to Center Line (In.)
0.406
Type
D-1 Attachment
Tensile Strength
5,730 lb/in
Agency Compliance
American National Standards Institute (ANSI)
Item
Attachment Link
Tensile Strength (Lb.)
5730
Standards
ANSI
Centerline to Hole Center
0.406 in
Maximum Operating Temperature
302 Degrees F
Attachment Type
Pin
Minimum Operating Temperature
14 Degrees F
Attachment Number
D-1
Pin Contruction
Riveted Pin
Link Type
Attachment
Centerline to Attachment End
0.469 in
Number of Tab Holes
1
Chain Number
C2050

Description

Attachment Link, Attachment Number D-1, Attachment Type Pin, Material Steel, Chain Overall Width 0.878 in, Chain Number C2050, Roller Diameter 25/64 in, Finish Black Oxide, Pitch 1 1/4 in, Link Type Attachment, Centerline to Attachment End 0.469 in, Centerline to Hole Center 0.406 in, Extended Pin Diameter 0.2 in, Lubrication Self Lube, Maximum Operating Temperature 302 Degrees F, Minimum Operating Temperature 14 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
