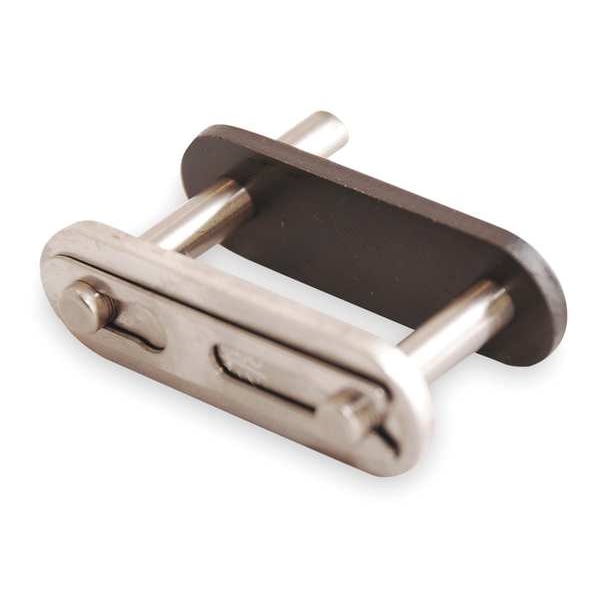

Connecting Roller Link, D-1 Attachment

  • Mfr # C2060HD1CL

  • Zoro # G1929453

product price:
$
11.35
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-1 Heavy Conveyor
Industry Chain Size
C2060H
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C2060HD1CL
Zoro #
G1929453
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2060H
Chain Link Overall Width
1.225 in
Chain Roller Dia.
0.469 in
Outside Pin Dia.
0.234 in
Roller Link Plate Height (In.)
0.713
Width Between Roller Link Plates (In.)
0.500
Overall Width (In.)
1.225
Pin Length (In.)
1.225
Length (In.)
1.500
Inside Pin Dia.
0.234 in
Width Between Roller Link Plates
0.5 in
Roller Dia. (In.)
0.469
ANSI Chain Size
C2060H
Pin Link Plate Thickness
0.125 in
Pin Link Plate Thickness (In.)
0.125
Pin Length
1.225 in
Roller Link Plate Height
0.713 in
Outside Pin Dia. (In.)
0.234
Chain Overall Width
1.225 in
Plate Thickness
0.5 in
Extended Pin Diameter
0.234 in
Roller Diameter
15/32 in
Plate Height
0.713 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-1 Heavy Conveyor
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 1/2 in
Number of Strands
Single
Pitch
1 1/2 in
Rivet End to Center Line (In.)
0.573
Tensile Strength
9,040 lb/in
Max. Allowable Load
1,410 lb
Agency Compliance
American National Standards Institute (ANSI)
Type
D-1 Attachment
Tensile Strength (Lb.)
9040
Material
Steel
Connecting End to Center Line
0.652 in
Lubrication
SAE 10 to SAE 50
Rivet End to Center Line
0.573 in
Connecting End to Center Line (In.)
0.652
Pin Type
Riveted
Max. Allowable Load (Lb.)
1410
Item
Attachment Link
Temp. Range
15 Degrees to 300 Degrees F
Finish
Plain
Attachment Number
D-1
Link Type
Attachment
Centerline to Hole Center
0.573 in
Centerline to Attachment End
0.652 in
Attachment Type
Pin
Maximum Operating Temperature
300 Degrees F
Minimum Operating Temperature
15 Degrees F
Pin Contruction
Riveted Pin
Standards
ANSI
Number of Tab Holes
1
Chain Number
C2060H

Description

Attachment Link, Attachment Number D-1, Attachment Type Pin, Material Steel, Chain Overall Width 1.225 in, Chain Number C2060H, Roller Diameter 15/32 in, Finish Plain, Pitch 1 1/2 in, Link Type Attachment, Centerline to Attachment End 0.652 in, Centerline to Hole Center 0.573 in, Extended Pin Diameter 0.234 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
