Shop All Chain Links
Tsubaki

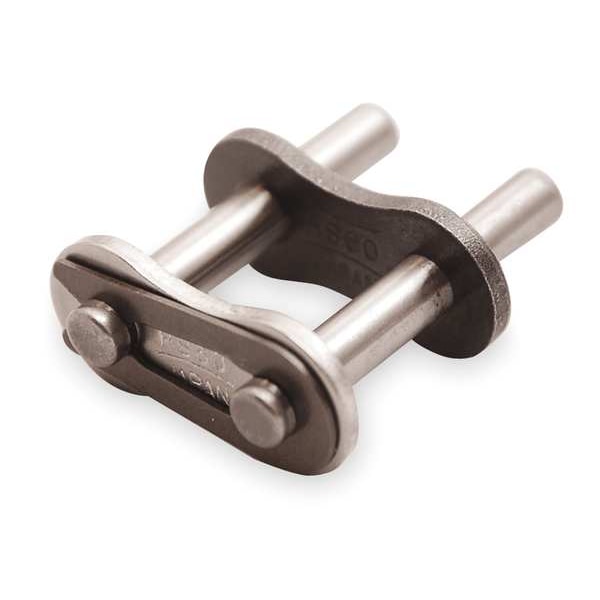

Connecting Roller Link, D-3 Attachment

product price: $10.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Chain Link Type D-3
  • Industry Chain Size 80
  • Chain Link Material Carbon Steel
  • Industry Chain Pitch 1 in
  • Number of Strands Single
See all product information

Product Information

Dimensions

Industry Chain Size 80
Chain Link Overall Width 1.398 in
Chain Roller Dia. 0.625 in
Length (In.) 1.000
Outside Pin Dia. 0.312 in
Overall Width (In.) 1.398
Pin Length (In.) 1.398
ANSI Chain Size 80
Pin Length 1.398 in
Outside Pin Dia. (In.) 0.312
Inside Pin Dia. 0.312 in
Roller Link Plate Height (In.) 0.949
Roller Link Plate Height 0.949 in
Roller Dia. (In.) 0.625
Width Between Roller Link Plates (In.) 0.625
Width Between Roller Link Plates 0.625 in
Extended Pin Diameter 0.312 in
Roller Diameter 5/8 in
Chain Overall Width 1.398 in
Plate Height 0.949 in

Details

Roller Chain Link Item Attachment Link
Roller Chain Link Type D-3
Chain Link Material Carbon Steel
Industry Chain Pitch 1 in
Number of Strands Single
Material Steel
Temp. Range 15 Degrees to 300 Degrees F
Pin Link Plate Thickness (In.) 0.125
Max. Allowable Load (Lb.) 2400
Lubrication SAE 10 to SAE 50
Tensile Strength (Lb.) 15,400
Item Attachment Link
Rivet End to Center Line (In.) 0.640
Type D-3 Attachment
Pin Link Plate Thickness 0.125 in
Rivet End to Center Line 0.64 in
Tensile Strength 15,400 lb/in
Max. Allowable Load 2,400 lb
Pin Type Cottered
Agency Compliance American National Standards Institute (ANSI)
Connecting End to Center Line (In.) 0.758
Connecting End to Center Line 0.758 in
Pitch 1 in
Finish Plain
Minimum Operating Temperature 15 Degrees F
Attachment Number D-3
Link Type Attachment Link
Pin Contruction Cottered Pin
Chain Number 80
Plate Thickness 0.625 in
Maximum Operating Temperature 300 Degrees F
Centerline to Attachment End 0.758 in
Number of Tab Holes 1
Standards ANSI
Attachment Type Pin
Centerline to Hole Center 0.64 in

Description

Attachment Link, Attachment Number D-3, Attachment Type Pin, Material Steel, Chain Overall Width 1.398 in, Chain Number 80, Roller Diameter 5/8 in, Finish Plain, Pitch 1 in, Link Type Attachment, Centerline to Attachment End 0.758 in, Centerline to Hole Center 0.64 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Cottered Pin, Plate Height 0.949 in
