Shop All Chain Links
Tsubaki

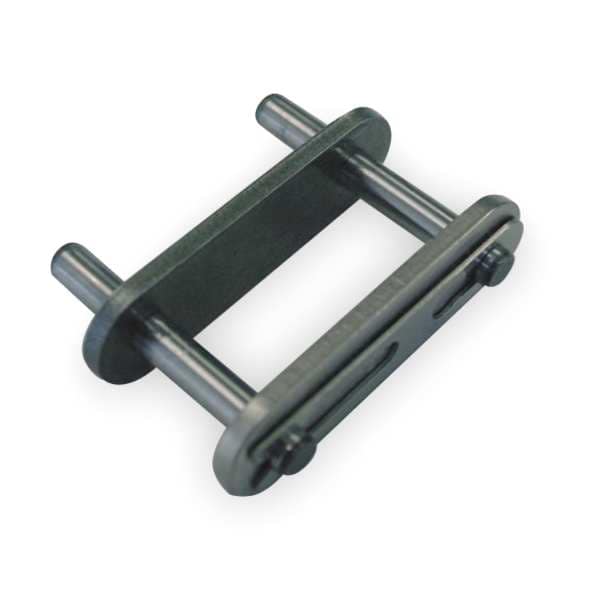

Connecting Roller Link, D-3 Attachment

original price: $12.58
38% off
new price: $7.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Chain Link Type D-3 Heavy Conveyor
  • Industry Chain Size C2060H
  • Chain Link Material Carbon Steel
  • Industry Chain Pitch 1 1/2 in
  • Number of Strands Single
See all product information

Product Information

Dimensions

Industry Chain Size C2060H
Chain Link Overall Width 1.225 in
Chain Roller Dia. 0.469 in
Outside Pin Dia. 0.234 in
Length (In.) 1.500
Pin Length 1.225 in
Width Between Roller Link Plates 0.5 in
Roller Dia. (In.) 0.469
Pin Length (In.) 1.225
Inside Pin Dia. 0.234 in
Roller Link Plate Height 0.713 in
Roller Link Plate Height (In.) 0.713
Outside Pin Dia. (In.) 0.234
Overall Width (In.) 1.225
ANSI Chain Size C2060H
Width Between Roller Link Plates (In.) 0.500
Plate Height 0.713 in
Extended Pin Diameter 0.234 in
Chain Overall Width 1.225 in
Roller Diameter 15/32 in

Details

Roller Chain Link Item Attachment Link
Roller Chain Link Type D-3 Heavy Conveyor
Chain Link Material Carbon Steel
Industry Chain Pitch 1 1/2 in
Number of Strands Single
Tensile Strength 9,040 lb/in
Item Attachment Link
Connecting End to Center Line (In.) 0.652
Rivet End to Center Line 0.573 in
Temp. Range 15 Degrees to 300 Degrees F
Lubrication SAE 10 to SAE 50
Pin Type Riveted
Material Steel
Pin Link Plate Thickness (In.) 0.125
Type D-3 Attachment
Rivet End to Center Line (In.) 0.573
Pitch 1 1/2 in
Agency Compliance American National Standards Institute (ANSI)
Pin Link Plate Thickness 0.125 in
Max. Allowable Load (Lb.) 1410
Max. Allowable Load 1,410 lb
Connecting End to Center Line 0.652 in
Tensile Strength (Lb.) 9040
Finish Plain
Link Type Attachment Link
Attachment Number D-3
Pin Contruction Riveted Pin
Centerline to Hole Center 0.573 in
Standards ANSI
Centerline to Attachment End 0.652 in
Chain Number C2060H
Plate Thickness 0.5 in
Minimum Operating Temperature 15 Degrees F
Number of Tab Holes 1
Attachment Type Pin
Maximum Operating Temperature 300 Degrees F

Description

Attachment Link, Attachment Number D-3, Attachment Type Pin, Material Steel, Chain Overall Width 1.225 in, Chain Number C2060H, Roller Diameter 15/32 in, Finish Plain, Pitch 1 1/2 in, Link Type Attachment, Centerline to Attachment End 0.652 in, Centerline to Hole Center 0.573 in, Extended Pin Diameter 0.234 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
