Shop TSUBAKI

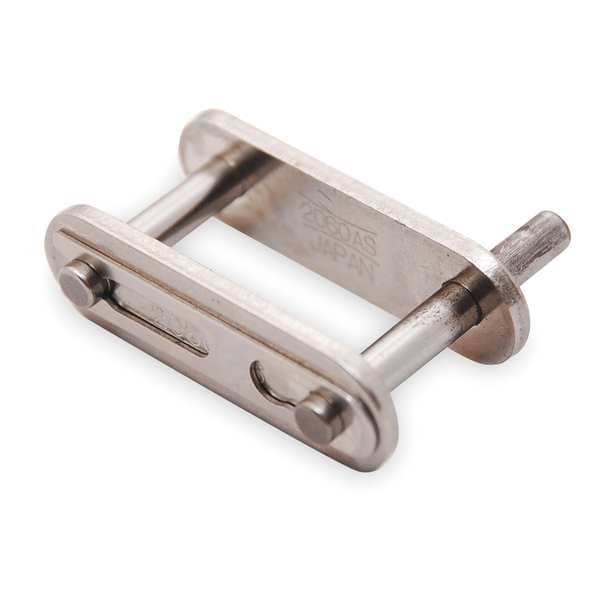

Connecting Roller Link, Double Pitch

  • Mfr # C2080HASD1CL

  • Zoro # G2097462

product price:
$
44.99
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-1 Heavy Conveyor
Industry Chain Size
C2080H
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C2080HASD1CL
Zoro #
G2097462
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2080H
Chain Link Overall Width
1.543 in
Chain Roller Dia.
0.625 in
Overall Width (In.)
1.543
Roller Link Plate Height
0.906 in
Roller Link Plate Height (In.)
0.906
Outside Pin Dia.
0.312 in
Pin Link Plate Thickness (In.)
0.906
Length (In.)
2.000
Width Between Roller Link Plates (In.)
0.625
Width Between Roller Link Plates
0.625 in
Pin Length (In.)
1.543
Pin Length
1.543 in
Inside Pin Dia.
0.312 in
Pin Link Plate Thickness
0.906 in
ANSI Chain Size
C2080HAS
Roller Dia. (In.)
0.625
Outside Pin Dia. (In.)
0.312
Roller Diameter
5/8 in
Extended Pin Diameter
0.312 in
Plate Thickness
0.625 in
Plate Height
0.906 in
Chain Overall Width
1.543 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-1 Heavy Conveyor
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
2 in
Number of Strands
Single
Material
Stainless Steel
Type
D-1 Attachment
Rivet End to Center Line (In.)
0.720
Rivet End to Center Line
0.72 in
Agency Compliance
American National Standards Institute (ANSI)
Max. Allowable Load (Lb.)
2400
Tensile Strength
15,400 lb/in
Temp. Range
-40 Degrees to 750 Degrees F
Max. Allowable Load
2,400 lb
Connecting End to Center Line
0.823 in
Pin Type
Cottered
Connecting End to Center Line (In.)
0.823
Item
Attachment Link
Lubrication
SAE 10 to SAE 50
Pitch
2 in
Tensile Strength (Lb.)
15,400
Finish
Plain
Maximum Operating Temperature
750 Degrees F
Attachment Type
Pin
Centerline to Hole Center
0.72 in
Material Grade
600
Attachment Number
D-1
Standards
ANSI
Minimum Operating Temperature
-40 Degrees F
Number of Tab Holes
1
Centerline to Attachment End
0.823 in
Chain Number
C2080H
Pin Contruction
Cottered Pin
Link Type
Attachment

Description

Attachment Link, Attachment Number D-1, Attachment Type Pin, Material Stainless Steel, Chain Overall Width 1.543 in, Chain Number C2080H, Roller Diameter 5/8 in, Finish Plain, Pitch 2 in, Link Type Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F, Minimum Operating Temperature -40 Degrees F, Number of Tab Holes 1
