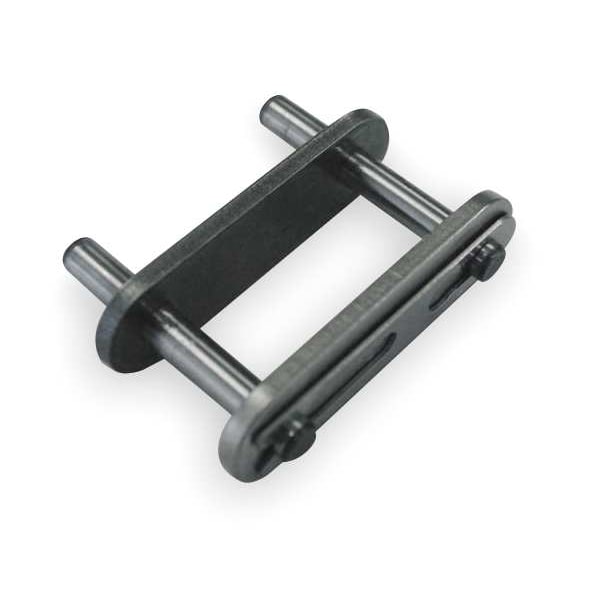

Tsubaki Connecting Roller Link, Double Pitch C2080HD3CL - main

Connecting Roller Link, Double Pitch

  • Mfr # C2080HD3CL

  • Zoro # G0934281

product price: $14.99
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-3 Heavy Conveyor
Industry Chain Size
C2080H
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C2080HD3CL
Zoro #
G0934281
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2080H
Chain Link Overall Width
1.543 in
Chain Roller Dia.
0.625 in
Pin Length
1.543 in
Roller Link Plate Height
0.906 in
Roller Link Plate Height (In.)
0.906
Roller Dia. (In.)
0.625
Pin Link Plate Thickness
0.906 in
Overall Width (In.)
1.543
Inside Pin Dia.
0.312 in
Width Between Roller Link Plates
0.625 in
Length (In.)
2.000
Pin Link Plate Thickness (In.)
0.906
Width Between Roller Link Plates (In.)
0.625
Outside Pin Dia.
0.312 in
Pin Length (In.)
1.543
ANSI Chain Size
C2080H
Outside Pin Dia. (In.)
0.312
Chain Overall Width
1.543 in
Plate Height
0.906 in
Extended Pin Diameter
0.312 in
Roller Diameter
5/8 in
Plate Thickness
0.625 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-3 Heavy Conveyor
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
Number of Strands
Single
Rivet End to Center Line (In.)
0.720
Max. Allowable Load
2,400 lb
Pin Type
Cottered
Item
Attachment Link
Rivet End to Center Line
0.72 in
Tensile Strength (Lb.)
15,400
Pitch
2 in
Agency Compliance
American National Standards Institute (ANSI)
Connecting End to Center Line
0.823 in
Connecting End to Center Line (In.)
0.823
Max. Allowable Load (Lb.)
2400
Temp. Range
15 Degrees to 300 Degrees F
Material
Steel
Type
D-3 Attachment
Lubrication
SAE 10 to SAE 50
Tensile Strength
15,400 lb/in
Finish
Plain
Maximum Operating Temperature
300 Degrees F
Number of Tab Holes
1
Attachment Type
Pin
Minimum Operating Temperature
15 Degrees F
Pin Contruction
Cottered Pin
Standards
ANSI
Chain Number
C2080H
Centerline to Hole Center
0.72 in
Link Type
Attachment Link
Centerline to Attachment End
0.823 in
Attachment Number
D-3

Description

Attachment Link, Attachment Number D-3, Attachment Type Pin, Material Steel, Chain Overall Width 1.543 in, Chain Number C2080H, Roller Diameter 5/8 in, Finish Plain, Pitch 2 in, Link Type Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Cottered Pin, Plate Height 0.906 in
