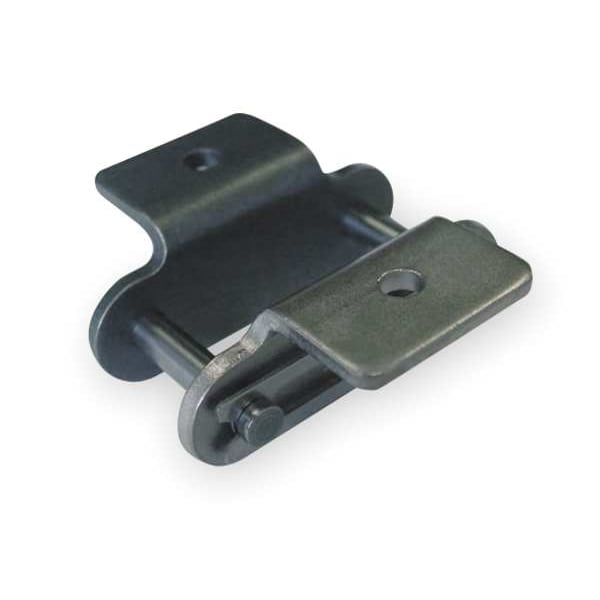

Tsubaki Connecting Roller Link, Double Pitch C2080HK1CL - main

Connecting Roller Link, Double Pitch

  • Mfr # C2080HK1CL

  • Zoro # G2521845

product price: $19.99
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
K-1 Heavy Conveyor
Industry Chain Size
C2080H
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C2080HK1CL
Zoro #
G2521845
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2080H
Chain Link Overall Width
1.543 in
Chain Roller Dia.
0.625 in
Width Between Roller Link Plates (In.)
0.625
ANSI Chain Size
C2080H
Outside Pin Dia.
0.312 in
Overall Width (In.)
1.543
Outside Pin Dia. (In.)
0.312
Pin Length (In.)
1.543
Inside Pin Dia.
0.312 in
Roller Link Plate Height
0.906 in
Length (In.)
2.000
Pin Link Plate Thickness
0.906 in
Roller Link Plate Height (In.)
0.906
Pin Link Plate Thickness (In.)
0.906
Roller Dia. (In.)
0.625
Pin Length
1.543 in
Width Between Roller Link Plates
0.625 in
Plate Height
0.906 in
Roller Diameter
5/8 in
Chain Overall Width
1.543 in
Plate Thickness
0.625 in
Extended Pin Diameter
0.312 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
K-1 Heavy Conveyor
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
Number of Strands
Single
Material
Steel
Lubrication
SAE 10 to SAE 50
Pin Type
Cottered
Tensile Strength
15,400 lb/in
Connecting End to Center Line (In.)
0.823
Rivet End to Center Line (In.)
0.720
Max. Allowable Load
2,400 lb
Type
K-1 Attachment
Agency Compliance
American National Standards Institute (ANSI)
Tensile Strength (Lb.)
15,400
Item
Attachment Link
Temp. Range
15 Degrees to 300 Degrees F
Rivet End to Center Line
0.72 in
Pitch
2 in
Max. Allowable Load (Lb.)
2400
Connecting End to Center Line
0.823 in
Finish
Plain
Maximum Operating Temperature
300 Degrees F
Attachment Number
K-1
Attachment Type
Tab
Number of Tab Holes
1
Centerline to Attachment End
0.823 in
Centerline to Hole Center
0.72 in
Minimum Operating Temperature
15 Degrees F
Chain Number
C2080H
Standards
ANSI
Pin Contruction
Cottered Pin
Link Type
Attachment Link

Description

Attachment Link, Attachment Number K-1, Attachment Type Tab, Material Steel, Chain Overall Width 1.543 in, Chain Number C2080H, Roller Diameter 5/8 in, Finish Plain, Pitch 2 in, Link Type Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Cottered Pin, Plate Height 0.906 in
