Shop TSUBAKI

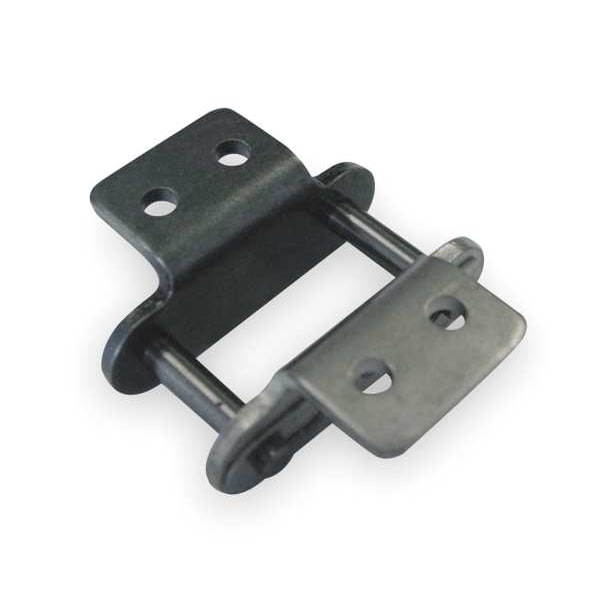

Connecting Roller Link, Double Pitch

  • Mfr # C2080HK2CL

  • Zoro # G0489772

product price:
$
19.99
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
K-2 Heavy Conveyor
Industry Chain Size
C2080H
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C2080HK2CL
Zoro #
G0489772
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2080H
Chain Link Overall Width
1.543 in
Chain Roller Dia.
0.625 in
Pin Length
1.543 in
Roller Dia. (In.)
0.625
Outside Pin Dia.
0.312 in
Pin Length (In.)
1.543
Length (In.)
2.000
Pin Link Plate Thickness (In.)
0.906
Width Between Roller Link Plates
0.625 in
Overall Width (In.)
1.543
Roller Link Plate Height (In.)
0.906
Outside Pin Dia. (In.)
0.312
Pin Link Plate Thickness
0.906 in
Roller Link Plate Height
0.906 in
Width Between Roller Link Plates (In.)
0.625
Inside Pin Dia.
0.312 in
ANSI Chain Size
C2080H
Plate Thickness
0.625 in
Plate Height
0.906 in
Roller Diameter
5/8 in
Chain Overall Width
1.543 in
Extended Pin Diameter
0.312 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
K-2 Heavy Conveyor
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
Number of Strands
Single
Connecting End to Center Line
0.823 in
Pitch
2 in
Tensile Strength
15,400 lb/in
Max. Allowable Load
2,400 lb
Temp. Range
15 Degrees to 300 Degrees F
Connecting End to Center Line (In.)
0.823
Item
Attachment Link
Tensile Strength (Lb.)
15,400
Lubrication
SAE 10 to SAE 50
Max. Allowable Load (Lb.)
2400
Material
Steel
Rivet End to Center Line (In.)
0.720
Rivet End to Center Line
0.72 in
Type
K-2 Attachment
Pin Type
Cottered
Agency Compliance
American National Standards Institute (ANSI)
Finish
Plain
Number of Tab Holes
1
Centerline to Hole Center
0.72 in
Minimum Operating Temperature
15 Degrees F
Attachment Type
Tab
Chain Number
C2080H
Link Type
Attachment
Maximum Operating Temperature
300 Degrees F
Standards
ANSI
Centerline to Attachment End
0.823 in
Attachment Number
K-2
Pin Contruction
Cottered Pin

Description

Attachment Link, Attachment Number K-2, Attachment Type Tab, Material Steel, Chain Overall Width 1.543 in, Chain Number C2080H, Roller Diameter 5/8 in, Finish Plain, Pitch 2 in, Link Type Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Cottered Pin, Plate Height 0.906 in
