Tsubaki

Connecting Roller Link, Double Pitch

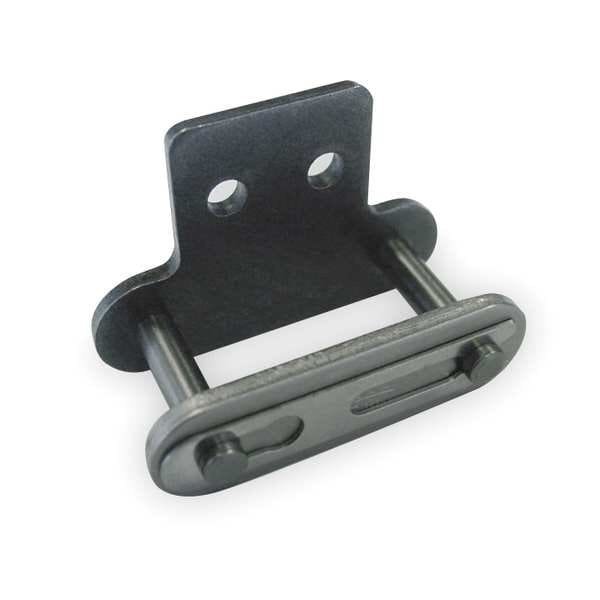

Tsubaki Connecting Roller Link, Double Pitch C2080HSA2CL
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$17.24
  • Roller Chain Link Item: Attachment Link
  • Roller Chain Link Type: SA-2 Heavy Conveyor
  • Industry Chain Size: C2080H
See full product details
Orders over $75 ship free.
Total: $17.24

Tsubaki #C2080HSA2CL Specifications

  • Roller Chain Link Item: Attachment Link
  • Roller Chain Link Type: SA-2 Heavy Conveyor
  • Industry Chain Size: C2080H
  • Chain Link Material: Carbon Steel
  • Industry Chain Pitch: 2 in
  • Number of Strands: Single
  • Chain Link Overall Width: 1.543 in
  • Chain Roller Dia.: 0.625 in
  • Roller Link Plate Height (In.): 0.906
  • Tensile Strength (Lb.): 15,400
  • Width Between Roller Link Plates: 0.625 in
  • Tensile Strength: 15,400 lb
  • Pin Type: Cottered
  • Overall Width (In.): 1.543
  • Pin Length (In.): 1.543
  • Connecting End to Center Line: 0.823 in
  • Outside Pin Dia.: 0.312 in
  • Temp. Range: 15 Degrees to 300 Degrees F
  • Inside Pin Dia.: 0.312 in
  • Rivet End to Center Line (In.): 0.720
  • Pitch: 2"
  • Agency Compliance: American National Standards Institute (ANSI)
  • Item: Attachment Link
  • Type: SA-2 Attachment
  • Length (In.): 2.000
  • Lubrication: SAE 10 to SAE 50
  • Connecting End to Center Line (In.): 0.823
  • Width Between Roller Link Plates (In.): 0.625
  • Pin Length: 1.543 in
  • Outside Pin Dia. (In.): 0.312
  • Roller Dia. (In.): 0.625
  • Max. Allowable Load (Lb.): 2400
  • Pin Link Plate Thickness (In.): 0.906
  • ANSI Chain Size: C2080H
  • Material: Carbon Steel
  • Rivet End to Center Line: 0.72 in
  • Pin Link Plate Thickness: 0.906 in
  • Max. Allowable Load: 2,400 lb
  • Roller Link Plate Height: 0.906 in
  • Country of Origin (subject to change): Japan
Feedback Help us improve our product information

Description

Attachment Link, SA-2 Heavy Conveyor, Industry Chain Size C2080H, Carbon Steel Chain Link Material, Industry Chain Pitch 2 in, Chain Link Overall Width 1.543 in, Chain Roller Dia. 0.625 in, Width Between Roller Link Plates 0.625 in, Roller Link Plate Height 0.906 in, Connecting End to Center Line 0.823 in, Rivet End to Center Line 0.72 in, Pin Length 1.543 in, Inside Pin Dia. 0.312 in, Outside Pin Dia. 0.312 in, Pin Link Plate Thickness 0.906 in, Cottered Pin Type, Max. Allowable Load 2,400 lb
