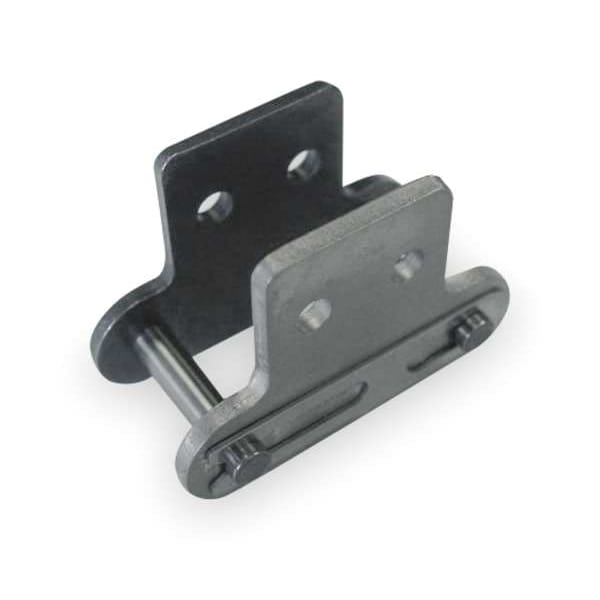

Connecting Roller Link, Double Pitch
Mfr # C2080HSK2CL
Zoro # G3396303
product price: $19.99
/eaKey Features
Roller Chain Link Item
Attachment Link
Roller Chain Link Type
SK-2 Heavy Conveyor
Industry Chain Size
C2080H
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
C2080HSK2CL
Zoro #
G3396303
UPC #
-
Country of Origin
Japan
Dimensions
Industry Chain Size
C2080H
Chain Link Overall Width
1.543 in
Chain Roller Dia.
0.625 in
Pin Link Plate Thickness
0.906 in
Pin Length
1.543 in
ANSI Chain Size
C2080H
Outside Pin Dia.
0.312 in
Roller Dia. (In.)
0.625
Overall Width (In.)
1.543
Width Between Roller Link Plates (In.)
0.625
Inside Pin Dia.
0.312 in
Width Between Roller Link Plates
0.625 in
Roller Link Plate Height (In.)
0.906
Roller Link Plate Height
0.906 in
Pin Link Plate Thickness (In.)
0.906
Length (In.)
2.000
Outside Pin Dia. (In.)
0.312
Pin Length (In.)
1.543
Extended Pin Diameter
0.312 in
Chain Overall Width
1.543 in
Plate Thickness
0.625 in
Plate Height
0.906 in
Roller Diameter
5/8 in
Description
Attachment Link, Attachment Number SK-2, Attachment Type Tab, Material Steel, Chain Overall Width 1.543 in, Chain Number C2080H, Roller Diameter 5/8 in, Finish Plain, Pitch 2 in, Link Type Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Cottered Pin, Plate Height 0.906 in
