Shop TSUBAKI

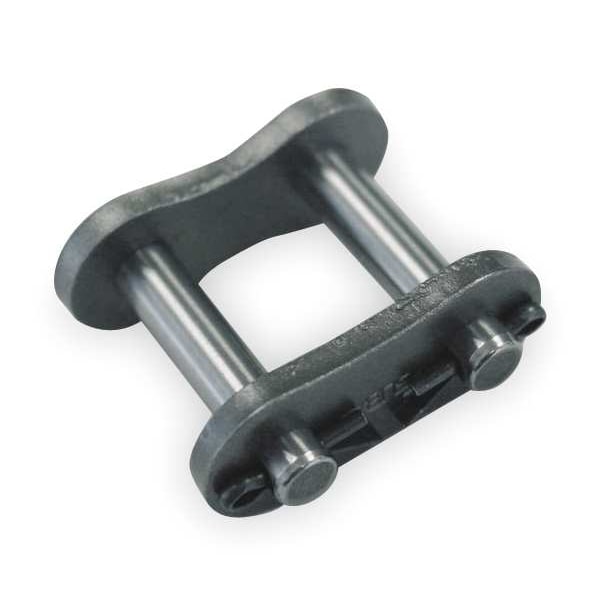

Connecting Roller Link, Heavy Series, PK5

  • Mfr # 60HCL

  • Zoro # G1104695

product price:
$
29.49
/pk of 5, $5.90/ea

Key Features

Roller Chain Link Item
Connecting Link
Roller Chain Link Type
Heavy Riveted
Industry Chain Size
60H
Chain Link Material
Carbon Steel
Industry Chain Pitch
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
60HCL
Zoro #
G1104695
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
60H
Chain Link Overall Width
1.252 in
Chain Roller Dia.
0.469 in
Overall Width (In.)
1.252
Inside Pin Dia.
0.234 in
ANSI Chain Size
60
Pin Link Plate Thickness
0.125 in
Roller Dia. (In.)
0.469
Width Between Roller Link Plates (In.)
0.500
Roller Link Plate Height
0.713 in
Pin Link Plate Thickness (In.)
0.125
Pin Length
1.252 in
Roller Link Plate Height (In.)
0.713
Length (In.)
0.750
Outside Pin Dia. (In.)
0.234
Width Between Roller Link Plates
0.5 in
Pin Length (In.)
1.252
Outside Pin Dia.
0.234 in
Plate Height
39/64 in, 23/32 in
Chain Overall Width
1 1/4 in
Roller Diameter
15/32 in
Pin Outside Diameter
15/64 in
Inside Width
1/2 in
Plate Thickness
0.125 in

Details

Roller Chain Link Item
Connecting Link
Roller Chain Link Type
Heavy Riveted
Chain Link Material
Carbon Steel
Industry Chain Pitch
3/4 in
Number of Strands
1
Tensile Strength (Lb.)
9920
Agency Compliance
American National Standards Institute (ANSI)
Max. Allowable Load
2,200 lb
Type
Heavy Series
Pin Type
Riveted
Tensile Strength
9,920 lbf
Pitch
3/4 in
Connecting End to Center Line (In.)
0.669
Rivet End to Center Line (In.)
0.583
Temp. Range
15 Degrees to 300 Degrees F
Connecting End to Center Line
0.669 in
Lubrication
SAE 10 to SAE 50
Material
Steel
Max. Allowable Load (Lb.)
2200
Rivet End to Center Line
0.583 in
Item
Connecting Link
Roller Chain Standard
ANSI
Heavy Series
Yes
Minimum Operating Temperature
15 Degrees F
Maximum Operating Temperature
300 Degrees F
Application
Heavy Load Situations
Standards
ANSI
Working Load Limit
2,200 lb
Link Type
Connecting
Chain Number
60H
Chain Construction
Riveted Pin
Pin Contruction
Riveted Pin

Description

Connecting Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 1 1/4 in, Chain Number 60H, Roller Diameter 15/32 in, Pitch 3/4 in, Link Type Connecting, Number of Strands 1, Application Heavy Load Situations, Heavy Series Yes, Inside Width 1/2 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Pin Contruction Riveted Pin, Pin Outside Diameter 15/64 in, Plate Height 39/64 in, 23/32 in
