Shop TSUBAKI

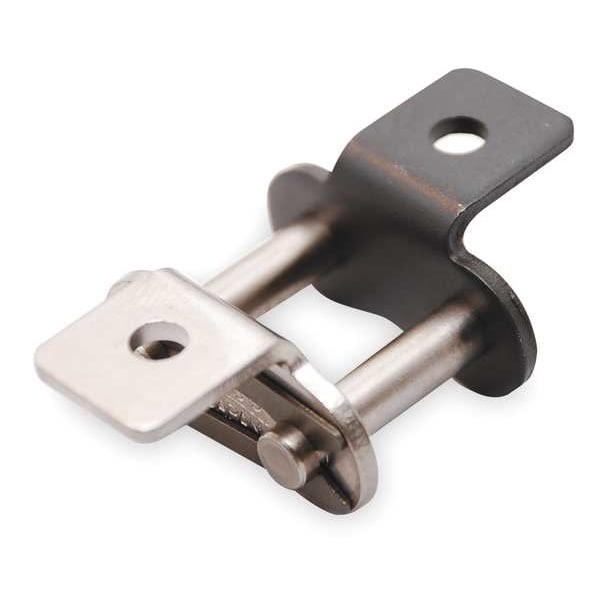

Connecting Roller Link, K-1 Attachment

  • Mfr # 80K1CL

  • Zoro # G0479421

product price:  $10.59
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
K-1
Industry Chain Size
80
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
80K1CL
Zoro #
G0479421
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
80
Chain Link Overall Width
1.398 in
Chain Roller Dia.
0.625 in
Width Between Roller Link Plates (In.)
0.625
Roller Link Plate Height (In.)
0.949
Roller Dia. (In.)
0.625
Pin Length
1.398 in
Outside Pin Dia.
0.312 in
Length (In.)
1.000
Pin Link Plate Thickness (In.)
0.125
Overall Width (In.)
1.398
ANSI Chain Size
80
Pin Length (In.)
1.398
Inside Pin Dia.
0.312 in
Width Between Roller Link Plates
0.625 in
Roller Link Plate Height
0.949 in
Pin Link Plate Thickness
0.125 in
Outside Pin Dia. (In.)
0.312
Roller Diameter
5/8 in
Extended Pin Diameter
0.312 in
Plate Height
0.949 in
Plate Thickness
0.625 in
Chain Overall Width
1.398 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
K-1
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 in
Number of Strands
Single
Type
K-1 Attachment
Pitch
1 in
Max. Allowable Load
2,400 lb
Pin Type
Cottered
Connecting End to Center Line (In.)
0.758
Item
Attachment Link
Material
Steel
Rivet End to Center Line
0.64 in
Agency Compliance
American National Standards Institute (ANSI)
Tensile Strength
15,400 lb/in
Rivet End to Center Line (In.)
0.640
Max. Allowable Load (Lb.)
2400
Tensile Strength (Lb.)
15,400
Temp. Range
15 Degrees to 300 Degrees F
Connecting End to Center Line
0.758 in
Lubrication
SAE 10 to SAE 50
Finish
Plain
Maximum Operating Temperature
300 Degrees F
Link Type
Attachment
Number of Tab Holes
1
Standards
ANSI
Minimum Operating Temperature
15 Degrees F
Pin Contruction
Cottered Pin
Chain Number
80
Centerline to Attachment End
0.758 in
Attachment Number
K-1
Attachment Type
Tab
Centerline to Hole Center
0.64 in

Description

Attachment Link, Attachment Number K-1, Attachment Type Tab, Material Steel, Chain Overall Width 1.398 in, Chain Number 80, Roller Diameter 5/8 in, Finish Plain, Pitch 1 in, Link Type Attachment, Centerline to Attachment End 0.758 in, Centerline to Hole Center 0.64 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Cottered Pin, Plate Height 0.949 in
