Shop TSUBAKI

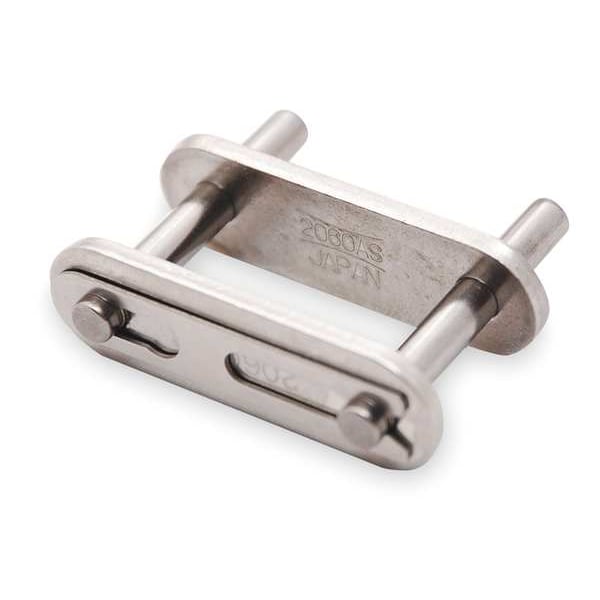

Connecting Roller Link, K-1 Attachment

  • Mfr # C2050ASK1CL

  • Zoro # G3042767

product price:  $26.99
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
K-1 Conveyor
Industry Chain Size
C2050
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C2050ASK1CL
Zoro #
G3042767
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2050
Chain Link Overall Width
0.878 in
Chain Roller Dia.
0.4 in
Pin Link Plate Thickness
0.08 in
Width Between Roller Link Plates (In.)
0.375
ANSI Chain Size
C2050AS
Overall Width (In.)
0.878
Pin Length
0.875 in
Pin Length (In.)
0.875
Pin Link Plate Thickness (In.)
0.080
Roller Dia. (In.)
0.400
Roller Link Plate Height (In.)
0.591
Inside Pin Dia.
0.2 in
Length (In.)
1.250
Outside Pin Dia. (In.)
0.200
Outside Pin Dia.
0.2 in
Roller Link Plate Height
0.591 in
Width Between Roller Link Plates
0.375 in
Plate Thickness
0.08 in
Tab Hole Diameter
0.205 in
Tab Width
0.937 in
Chain Overall Width
0.878 in
Inside Width
3/8 in
Roller Diameter
25/64 in
Plate Height
0.591 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
K-1 Conveyor
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 1/4 in
Number of Strands
Single
Rivet End to Center Line
0.406 in
Pin Type
Riveted
Max. Allowable Load (Lb.)
231
Pitch
1 1/4 in
Max. Allowable Load
231 lb
Type
K-1 Attachment
Agency Compliance
American National Standards Institute (ANSI)
Material
Stainless Steel
Lubrication
SAE 10 to SAE 50
Temp. Range
-40 Degrees to 750 Degrees F
Connecting End to Center Line
0.469 in
Item
Attachment Link
Rivet End to Center Line (In.)
0.406
Connecting End to Center Line (In.)
0.469
Finish
Plain
Chain Construction
Riveted Pin
Heavy Series
No
Pitch Type
Double Pitch
Link Type
Attachment
Attachment Number
K-1
Chain Number
C2050
Attachment Location
Two Sides
Number of Tab Holes
1
Tab Orientation
Horizontal Outward
Working Load Limit
970 lb
Centerline to Attachment End
0.953 in
Attachment Type
Tab
Material Grade
600
Pin Contruction
Riveted Pin
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
750 Degrees F
Standards
ANSI
Centerline to Hole Center
0.626 in

Description

Attachment Link, Attachment Number K-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 0.878 in, Chain Number C2050, Roller Diameter 25/64 in, Finish Plain, Pitch 1 1/4 in, Link Type Attachment, Attachment Location Two Sides, Centerline to Attachment End 0.953 in, Centerline to Hole Center 0.626 in, Chain Construction Riveted Pin, Extended Pin Diameter Not Applicable, Heavy Series No, Inside Width 3/8 in, Lubrication SAE 10 to SAE 50, Material Grade 600
