Shop TSUBAKI

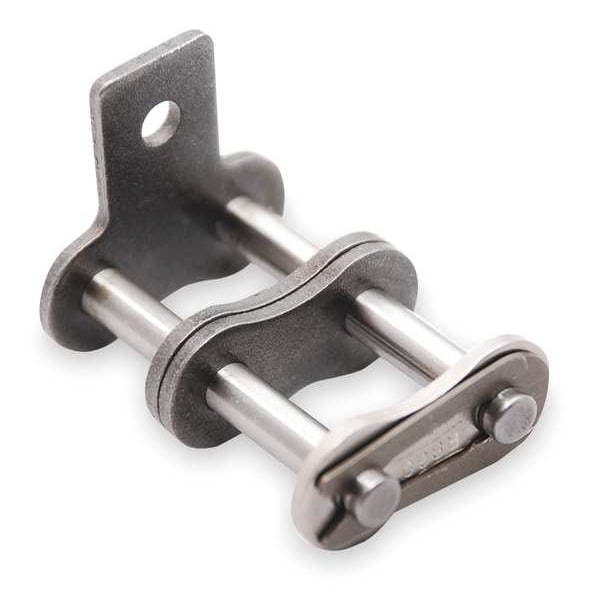

Connecting Roller Link, SA-1 Attachment

  • Mfr # 80-2SA1CL

  • Zoro # G3319836

product price:  $21.15
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
SA-1
Industry Chain Size
80-2
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
80-2SA1CL
Zoro #
G3319836
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
80-2
Chain Link Overall Width
2.552 in
Chain Roller Dia.
0.625 in
Width Between Roller Link Plates
0.625 in
Roller Link Plate Height
0.949 in
Outside Pin Dia.
0.312 in
Roller Dia. (In.)
0.625
ANSI Chain Size
80-2
Roller Link Plate Height (In.)
0.949
Inside Pin Dia.
0.312 in
Overall Width (In.)
2.552
Outside Pin Dia. (In.)
0.312
Pin Length
2.552 in
Pin Link Plate Thickness
0.125 in
Length (In.)
0.750
Width Between Roller Link Plates (In.)
0.625
Pin Link Plate Thickness (In.)
0.125
Pin Length (In.)
2.552
Roller Diameter
5/8 in
Extended Pin Diameter
0.312 in
Plate Height
0.949 in
Chain Overall Width
2.552 in
Plate Thickness
0.625 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
SA-1
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 in
Number of Strands
Double
Max. Allowable Load (Lb.)
4080
Item
Attachment Link
Max. Allowable Load
4,080 lb
Pin Type
Cottered
Lubrication
SAE 10 to SAE 50
Material
Steel
Rivet End to Center Line (In.)
1.217
Pitch
1 in
Tensile Strength
26,180 lb/in
Connecting End to Center Line
1.335 in
Agency Compliance
American National Standards Institute (ANSI)
Connecting End to Center Line (In.)
1.335
Temp. Range
15 Degrees to 300 Degrees F
Tensile Strength (Lb.)
26,180
Rivet End to Center Line
1.217 in
Type
SA-1 Attachment
Finish
Plain
Link Type
Attachment
Pin Contruction
Cottered Pin
Attachment Type
Tab
Chain Number
80
Standards
ANSI
Number of Tab Holes
2
Maximum Operating Temperature
300 Degrees F
Centerline to Attachment End
1.335 in
Attachment Number
SA-1
Centerline to Hole Center
1.217 in
Minimum Operating Temperature
15 Degrees F

Description

Attachment Link, Attachment Number SA-1, Attachment Type Tab, Material Steel, Chain Overall Width 2.552 in, Chain Number 80, Roller Diameter 5/8 in, Finish Plain, Pitch 1 in, Link Type Attachment, Centerline to Attachment End 1.335 in, Centerline to Hole Center 1.217 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 2, Pin Contruction Cottered Pin, Plate Height 0.949 in
