Tsubaki

Connecting Roller Link, SA-1 Attachment

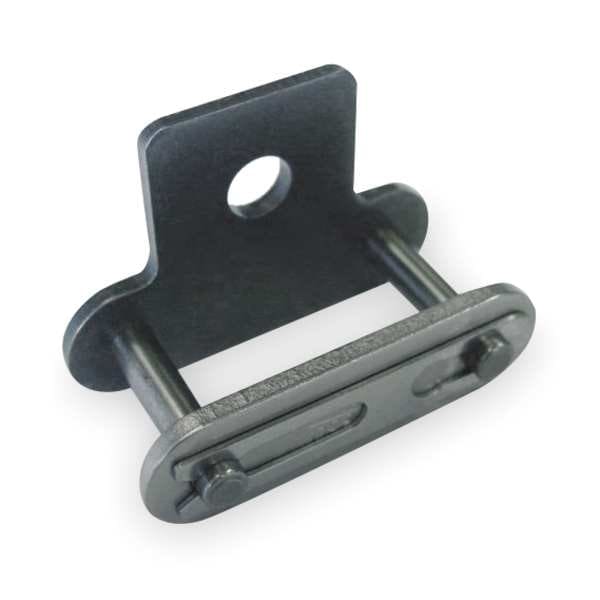

Tsubaki Connecting Roller Link, SA-1 Attachment C2050SA1CL
Tap to zoom
Hover or click to zoom
$8.03

Must order in multiples of 2

  • Roller Chain Link Item: Attachment Link
  • Roller Chain Link Type: SA-1 Conveyor
  • Industry Chain Size: C2050
See full product details
Orders over $75 ship free.
Total: $16.06

Tsubaki #C2050SA1CL Specifications

  • Roller Chain Link Item: Attachment Link
  • Roller Chain Link Type: SA-1 Conveyor
  • Industry Chain Size: C2050
  • Chain Link Material: Carbon Steel
  • Industry Chain Pitch: 1 1/4 in
  • Number of Strands: Single
  • Chain Link Overall Width: 0.878 in
  • Chain Roller Dia.: 0.4 in
  • Pin Link Plate Thickness: 0.08 in
  • Rivet End to Center Line (In.): 0.406
  • Connecting End to Center Line: 0.469 in
  • Pin Type: Riveted
  • Width Between Roller Link Plates: 0.375 in
  • Pitch: 1.25"
  • Tensile Strength: 6,170 lb
  • Type: SA-1 Attachment
  • Roller Link Plate Height: 0.591 in
  • Inside Pin Dia.: 0.2 in
  • Temp. Range: 15 Degrees to 300 Degrees F
  • Max. Allowable Load (Lb.): 970
  • Tensile Strength (Lb.): 6170
  • Item: Attachment Link
  • Width Between Roller Link Plates (In.): 0.375
  • Max. Allowable Load: 970 lb
  • Roller Link Plate Height (In.): 0.591
  • Outside Pin Dia.: 0.2 in
  • Roller Dia. (In.): 0.400
  • Pin Length: 0.875 in
  • ANSI Chain Size: C2050
  • Lubrication: SAE 10 to SAE 50
  • Connecting End to Center Line (In.): 0.469
  • Outside Pin Dia. (In.): 0.200
  • Overall Width (In.): 0.878
  • Rivet End to Center Line: 0.406 in
  • Pin Link Plate Thickness (In.): 0.080
  • Agency Compliance: American National Standards Institute (ANSI)
  • Pin Length (In.): 0.875
  • Length (In.): 1.250
  • Material: Carbon Steel
  • Country of Origin (subject to change): Japan

Description

Attachment Link, SA-1 Conveyor, Industry Chain Size C2050, Carbon Steel Chain Link Material, Industry Chain Pitch 1 1/4 in, Chain Link Overall Width 0.878 in, Chain Roller Dia. 0.4 in, Width Between Roller Link Plates 0.375 in, Roller Link Plate Height 0.591 in, Connecting End to Center Line 0.469 in, Rivet End to Center Line 0.406 in, Pin Length 0.875 in, Inside Pin Dia. 0.2 in, Outside Pin Dia. 0.2 in, Pin Link Plate Thickness 0.08 in, Riveted Pin Type, Max. Allowable Load 970 lb
