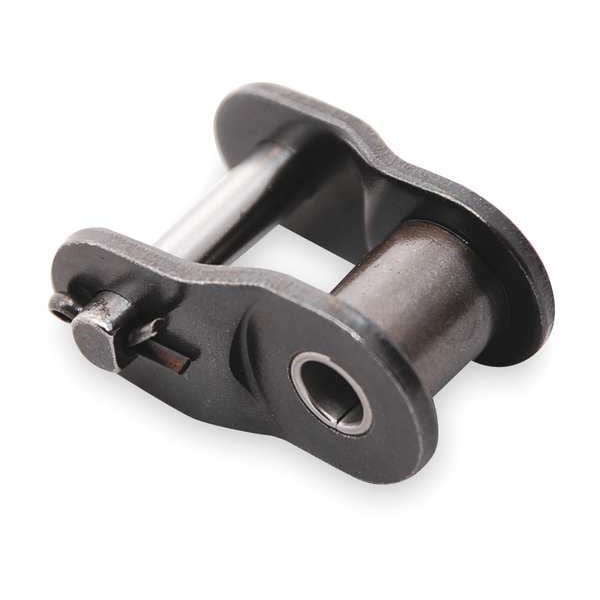

Offset Roller Link, Curved
Mfr # 80CUOL
Zoro # G2136154
product price: $24.69
/eaKey Features
Roller Chain Link Item
Offset Link
Roller Chain Link Type
Curved Riveted
Industry Chain Size
80
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
80CUOL
Zoro #
G2136154
UPC #
-
Country of Origin
Japan
Dimensions
Industry Chain Size
80
Chain Link Overall Width
1.398 in
Chain Roller Dia.
0.625 in
Width Between Roller Link Plates
0.625 in
Pin Length
1.448 in
Pin Link Plate Thickness
0.125 in
Length (In.)
1.000
Roller Dia. (In.)
0.625
Inside Pin Dia.
0.312 in
Overall Width (In.)
1.398
Pin Link Plate Thickness (In.)
0.125
Width Between Roller Link Plates (In.)
0.625
Outside Pin Dia. (In.)
0.312
Roller Link Plate Height (In.)
0.949
ANSI Chain Size
80
Roller Link Plate Height
0.949 in
Pin Length (In.)
1.448
Outside Pin Dia.
0.312 in
Roller Diameter
5/8 in
Pin Outside Diameter
5/16 in
Chain Overall Width
1 29/64 in
Plate Thickness
0.125 in
Plate Height
13/16 in, 61/64 in
Inside Width
5/8 in
Description
Offset Link, Chain Construction Cottered Pin, Material Steel, Chain Overall Width 1 29/64 in, Chain Number 80, Roller Diameter 5/8 in, Pitch 1 in, Link Type Offset, Number of Strands 1, Heavy Series No, Inside Width 5/8 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Pin Contruction Cottered Pin, Pin Outside Diameter 5/16 in, Plate Height 13/16 in, 61/64 in, Plate Thickness 0.125 in, Roller Chain Standard ANSI..
