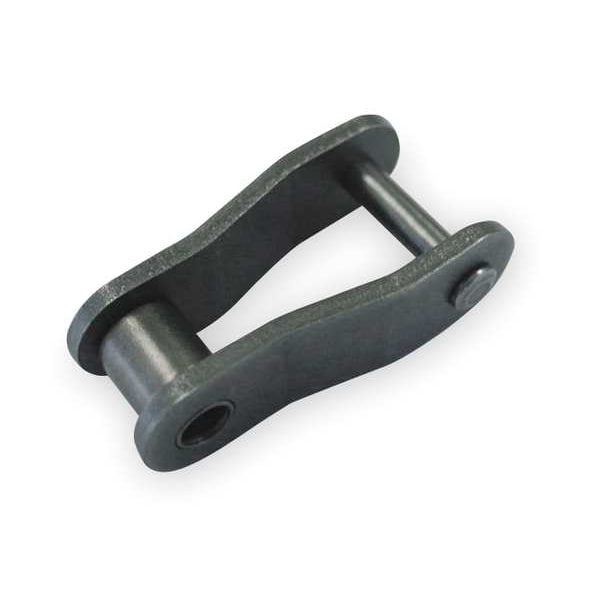

Tsubaki Offset Roller Link, Double Pitch C2062HOL - main

Offset Roller Link, Double Pitch

  • Mfr # C2062HOL

  • Zoro # G2024522

product price: $13.99
/ea

Key Features

Roller Chain Link Item
Offset Link
Roller Chain Link Type
Heavy Conveyor
Industry Chain Size
C2062H
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C2062HOL
Zoro #
G2024522
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2062H
Chain Link Overall Width
1.225 in
Chain Roller Dia.
0.875 in
Length (In.)
1.500
Outside Pin Dia.
0.234 in
Width Between Roller Link Plates (In.)
0.500
Inside Pin Dia.
0.234 in
Pin Link Plate Thickness (In.)
0.677
Roller Link Plate Height
0.677 in
Pin Length (In.)
1.225
ANSI Chain Size
C2062H
Outside Pin Dia. (In.)
0.234
Overall Width (In.)
1.225
Roller Link Plate Height (In.)
0.677
Width Between Roller Link Plates
0.5 in
Roller Dia. (In.)
0.875
Pin Link Plate Thickness
0.677 in
Pin Length
1.225 in
Plate Thickness
0.125 in
Chain Overall Width
1 7/32 in
Inside Width
1/2 in
Plate Height
43/64 in
Pin Outside Diameter
15/64 in
Roller Diameter
7/8 in

Details

Roller Chain Link Item
Offset Link
Roller Chain Link Type
Heavy Conveyor
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 1/2 in
Number of Strands
1
Item
Offset Link
Rivet End to Center Line
0.573 in
Lubrication
SAE 10 to SAE 50
Type
Double Pitch
Material
Steel
Pitch
1 1/2 in
Tensile Strength
9,040 lbf
Temp. Range
15 Degrees to 300 Degrees F
Max. Allowable Load (Lb.)
1410
Rivet End to Center Line (In.)
0.573
Max. Allowable Load
1,410 lb
Connecting End to Center Line
0.652 in
Tensile Strength (Lb.)
9040
Agency Compliance
American National Standards Institute (ANSI)
Pin Type
Riveted
Connecting End to Center Line (In.)
0.652
Link Type
Offset Link
Minimum Operating Temperature
15 Degrees F
Chain Construction
Riveted Pin
Roller Chain Standard
ANSI
Series
Conveyor
Pin Contruction
Riveted Pin
Chain Number
C2062H
Working Load Limit
1,410 lb
Standards
ANSI
Heavy Series
Yes
Pitch Type
Double Pitch
Application
Baking, Bottling Equipment, Farming Implements, Material Handling Equipment, Packaging, Road Building Machinery, Textile Machinery
Maximum Operating Temperature
300 Degrees F

Description

Offset Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 1 7/32 in, Chain Number C2062, Roller Diameter 7/8 in, Pitch 1 1/2 in, Link Type Offset, Number of Strands 1, Application Baking, Bottling Equipment, Farming Implements, Material Handling Equipment, Packaging, Road Building Machinery, Textile Machinery, Heavy Series Yes, Inside Width 1/2 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F
