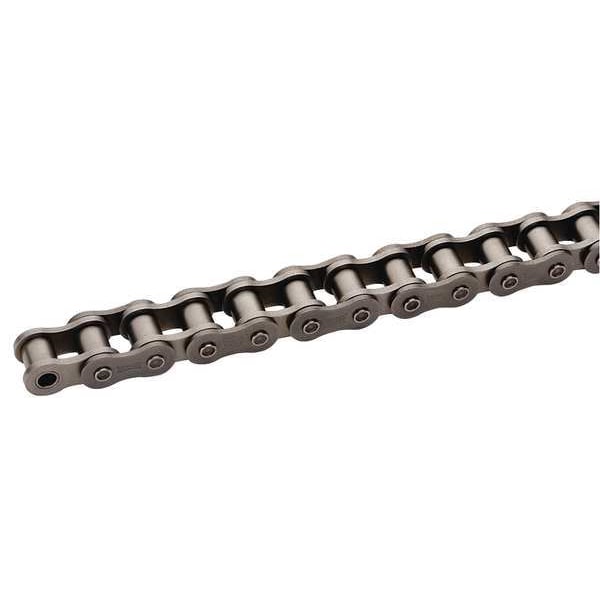

Roller Chain, British, 10B ANSI, 10 ft.

  • Mfr # RS10BSS

  • Zoro # G8798535

product price:
$
882.99
/ea
Free Shipping & Returns

Key Features

Roller Chain Item
Roller Chain
Roller Chain Type
British Standard
Chain Number
10B
Industry Chain Size
10B
Pin Contruction
Riveted Pin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RS10BSS
Zoro #
G8798535
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
10B
Chain Length
10 ft
Chain Roller Dia.
0.4 in
Overall Length
10 ft
Roller Bushing Width
0.38 in
Outside Pin Dia.
0.2 in
Overall Width
0.819"
Roller Dia.
0.400"
Roller Link Plate Height
0.579 in
ANSI Chain Size
10B
Chain Overall Width
0.57 in
Pin Length
0.819 in
Length
10 ft
Inside Pin Dia.
0.2 in
Plate Thickness
0.06 in
Pin Link Plate Thickness
0.06 in
Pin Outside Diameter
0.2 in
Weight Per Length
0.64 lb/ft
Plate Height
0.579 in
Roller Diameter
13/32 in
Inside Width
0.38 in
Pin Hole Diameter
0.2 in
Wire Rope Length
10 ft

Details

Roller Chain Item
Roller Chain
Item
Roller Chain
Roller Chain Type
British Standard
Chain Number
10B
Pin Contruction
Riveted Pin
Number of Strands
1
Chain Material
304 Stainless Steel
Industry Chain Pitch
5/8 in
Material
Stainless Steel
Tensile Strength
3,190 lbf
Series
SS
Connecting End to Center Line
0.449 in
Pitch
5/8 in
Standards
BS, DIN
Rivet End to Center Line
0.37 in
Includes
(1) Connecting Link
Max. Allowable Load
151 lb
Chain Type
British Standard
Temp. Range
-270 Degrees to 750 Degrees F
Lubrication
SAE 10 to SAE 50
Pin Type
Riveted
Chain Tensile Strength
3,190 lb
Working Load Limit
148 lb
Material Grade
Type 304
Features
This Single-Strand Roller Chain is Designed to Help Transfer Motion From One Set of Sprockets to Another
Chain Construction
Riveted Pin
Resistance Properties
Corrosion Resistant, High and Low Temperature Resistant
Pitch Type
Double Pitch
Heavy Series
No
Number of Links
190 per 10 ft
Maximum Operating Temperature
750 Degrees F
Roller Chain Standard
ISO/Metric
Minimum Operating Temperature
-270 Degrees F

Description

Roller Chain, Chain Construction Riveted Pin, Overall Length 10 ft, Material Stainless Steel, Chain Number 10B, Chain Overall Width 0.57 in, Roller Diameter 13/32 in, Tensile Strength 3,190 lbf, Pitch 5/8 in, Number of Strands 1, Pin Contruction Riveted Pin, Pitch Type Double Pitch, Inside Width 0.38 in, Series SS, Working Load Limit 148 lb, Features This Single-Strand Roller Chain is Designed to Help Transfer Motion From One Set of Sprockets to Another, Heavy Series No
