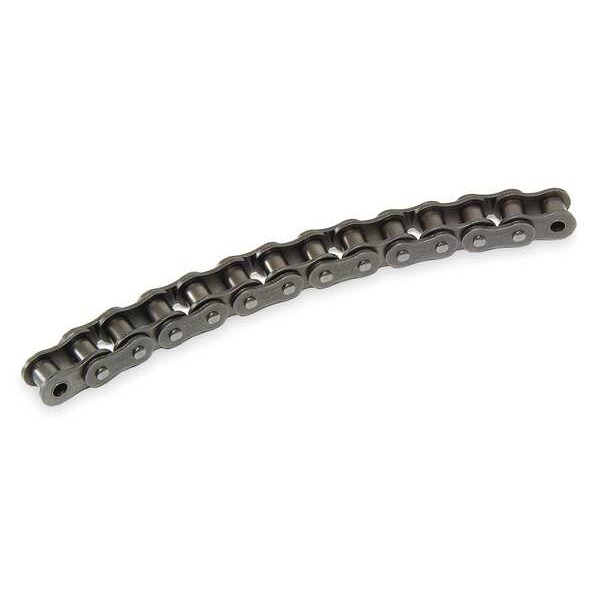

Roller Chain, Curved, 35CU ANSI, 10 ft.

  • Mfr # 35CURB
  • Zoro # G1625723
product price:
$
359.99
/ea
Free Shipping & Returns

Key Features

Roller Chain Item
Roller Chain
Roller Chain Type
Curved Riveted
Chain Number
35
Industry Chain Size
35
Pin Contruction
Riveted
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
35CURB
Zoro #
G1625723
UPC #
-
Country of Origin
Japan
Roller Chain Item
Roller Chain
Item
Roller Chain
Roller Chain Type
Curved Riveted
Chain Number
35
Pin Contruction
Riveted
Number of Strands
1
Chain Material
Carbon Steel
Industry Chain Pitch
3/8 in
Material
Steel
Tensile Strength
1,800 lbf
Series
Curved Riveted
Chain Type
Curved Riveted
Temp. Range
15 Degrees to 300 Degrees F
Chain Tensile Strength
1,800 lb
Standards
ANSI
Connecting End to Center Line
0.301 in
Pin Type
Riveted
Rivet End to Center Line
0.238 in
Lubrication
SAE 10 to SAE 50
Includes
(1) Connecting Link
Pitch
3/8 in
Max. Allowable Load
210 lb
Features
Tsubaki Curved Chain Has the Additional Clearance Between the Pins, Bushings, Roller Links and Pin Links to Allow for Extra Flexibility and Greater Lateral Displacement
Roller Chain Standard
ANSI
Chain Construction
Riveted Pin, Rollerless Bushing, Sidebow Curved
Heavy Series
No
Working Load Limit
210 lb
Minimum Operating Temperature
15 Degrees F
Maximum Operating Temperature
300 Degrees F
Shell Material
Steel
Traction Material
Steel

Dimensions

Industry Chain Size
35
Chain Length
10 ft
Chain Roller Dia.
0.2 in
Overall Length
10 ft
Roller Bushing Width
0.188 in
Outside Pin Dia.
0.125 in
Pin Link Plate Thickness
0.05 in
ANSI Chain Size
35CU
Chain Overall Width
0.539 in
Overall Width
0.539"
Length
10 ft
Roller Link Plate Height
0.354 in
Roller Dia.
0.200"
Inside Pin Dia.
0.125 in
Pin Length
0.539 in
Plate Thickness
0.05 in
Minimum Curve Radius
10 in
Plate Height
0.307 in, 0.354 in
Weight Per Length
0.22 lb/ft
Pin Hole Diameter
0.125 in
Inside Width
0.188 in
Pin Outside Diameter
0.125 in
Roller Diameter
13/64 in
Wire Rope Length
10 ft
Fits Chest Size
Tsubaki Curved Chain Has the Additional Clearance Between the Pins, Bushings, Roller Links and Pin Links to Allow for Extra Flexibility and Greater Lateral Displacement

Description

Roller Chain, Chain Construction Riveted Pin, Rollerless Bushing, Sidebow Curved, Overall Length 10 ft, Material Steel, Chain Number 35, Chain Overall Width 0.539 in, Roller Diameter 13/64 in, Tensile Strength 1,800 lbf, Pitch 3/8 in, Number of Strands 1, Pin Contruction Riveted Pin, Inside Width 0.188 in, Series Curved Riveted, Working Load Limit 210 lb
