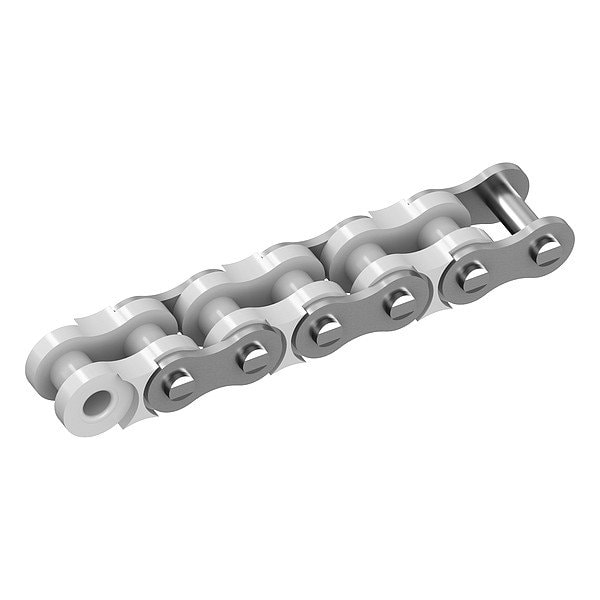

Roller Chains
Mfr # 35PC
Zoro # G316135707
product price: $539.99
/ea
Free Shipping & Returns
Key Features
Plate Thickness
0.087 in
Chain Overall Width
0.579 in
Standards
ANSI
Number of Strands
1
Pitch
3/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
35PC
Zoro #
G316135707
UPC #
097039190154
Country of Origin
Japan
Dimensions
Plate Thickness
0.087 in
Chain Overall Width
0.579 in
Overall Length
10 ft
Weight Per Length
0.15 lb/ft
Plate Height
0.354 in
Pin Outside Diameter
0.141 in
Roller Diameter
13/64 in
Inside Width
0.188 in
Details
Item
Roller Chains
Standards
ANSI
Number of Strands
1
Pitch
3/8 in
Maximum Operating Temperature
176 Degrees F
Application
Conveying, Driving
Working Load Limit
40 lb
Minimum Operating Temperature
-14 Degrees F
Resistance Properties
Corrosion Resistant
Roller Chain Standard
ANSI
Description
Roller Chains, Overall Length 10 ft, Chain Overall Width 0.579 in, Roller Diameter 13/64 in, Pitch 3/8 in, Application Conveying, Driving, Number of Strands 1, Inside Width 0.188 in, Working Load Limit 40 lb, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -14 Degrees F, Pin Outside Diameter 0.141 in, Plate Height 0.354 in, Plate Thickness 0.087 in
