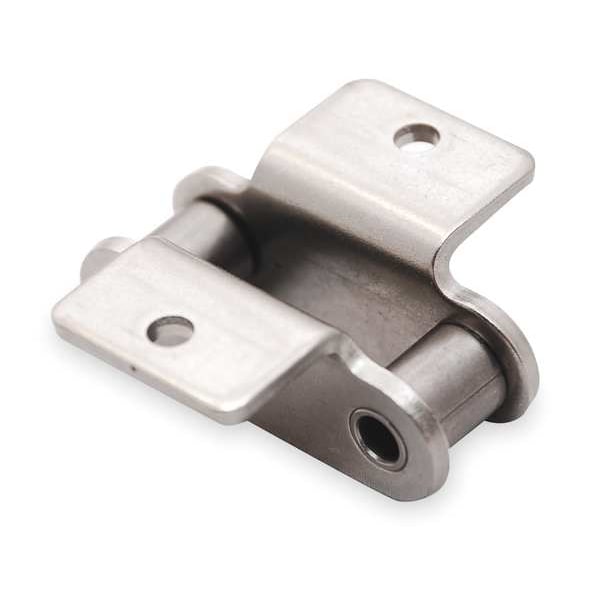

Roller Link, Double Pitch
Mfr # C2060HASK1RL
Zoro # G3414144
product price: $35.59
/eaKey Features
Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
K-1 Heavy Conveyor
Industry Chain Size
C2060H
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
C2060HASK1RL
Zoro #
G3414144
UPC #
-
Country of Origin
Japan
Dimensions
Industry Chain Size
C2060H
Chain Link Overall Width
1.225 in
Chain Roller Dia.
0.469 in
ANSI Chain Size
C2060HAS
Roller Link Plate Height
0.677 in
Pin Length
1.225 in
Width Between Roller Link Plates (In.)
0.500
Length (In.)
1.500
Pin Length (In.)
1.225
Width Between Roller Link Plates
0.5 in
Outside Pin Dia. (In.)
0.234
Inside Pin Dia.
0.234 in
Roller Link Plate Height (In.)
0.677
Overall Width (In.)
1.225
Pin Link Plate Thickness (In.)
0.677
Pin Link Plate Thickness
0.677 in
Outside Pin Dia.
0.234 in
Roller Dia. (In.)
0.469
Chain Overall Width
1.225 in
Extended Pin Diameter
0.234 in
Plate Thickness
0.5 in
Plate Height
0.677 in
Roller Diameter
15/32 in
Description
Roller Attachment Link, Attachment Number K-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 1.225 in, Chain Number C2060H, Roller Diameter 15/32 in, Finish Plain, Pitch 1 1/2 in, Link Type Roller Attachment, Centerline to Attachment End 0.652 in, Centerline to Hole Center 0.573 in, Extended Pin Diameter 0.234 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F, Minimum Operating Temperature -40 Degrees F, Number of Tab Holes 1
