Tsubaki

Roller Link, Double Pitch

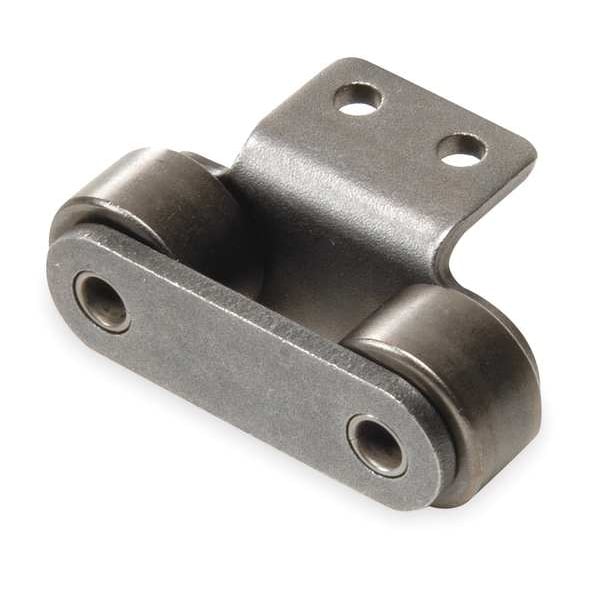

Tsubaki Roller Link,  Double Pitch C2062HA2RL
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$12.39 /ea

Order in multiples of 2

  • Roller Chain Link Item: Roller Attachment Link
  • Roller Chain Link Type: A-2 Heavy Conveyor
  • Industry Chain Size: C2062H
See full product details
Orders over $75 ship free.
Total: $24.78

Tsubaki #C2062HA2RL Specifications

  • Roller Chain Link Item: Roller Attachment Link
  • Roller Chain Link Type: A-2 Heavy Conveyor
  • Industry Chain Size: C2062H
  • Chain Link Material: Carbon Steel
  • Industry Chain Pitch: 1 1/2 in
  • Number of Strands: Single
  • Chain Link Overall Width: 1.225 in
  • Chain Roller Dia.: 0.875 in
  • Roller Link Plate Height (In.): 0.677
  • Outside Pin Dia.: 0.234 in
  • Temp. Range: 15 Degrees to 300 Degrees F
  • Pin Link Plate Thickness (In.): 0.677
  • Pin Type: Riveted
  • Pin Length: 1.225 in
  • Length (In.): 1.500
  • Roller Dia. (In.): 0.875
  • Type: A-2 Attachment
  • Rivet End to Center Line: 0.573 in
  • Rivet End to Center Line (In.): 0.573
  • Connecting End to Center Line: 0.652 in
  • Connecting End to Center Line (In.): 0.652
  • Overall Width (In.): 1.225
  • Max. Allowable Load (Lb.): 1410
  • Lubrication: SAE 10 to SAE 50
  • Item: Roller Attachment Link
  • ANSI Chain Size: C2062H
  • Inside Pin Dia.: 0.234 in
  • Outside Pin Dia. (In.): 0.234
  • Roller Link Plate Height: 0.677 in
  • Material: Carbon Steel
  • Width Between Roller Link Plates (In.): 0.500
  • Agency Compliance: American National Standards Institute (ANSI)
  • Max. Allowable Load: 1,410 lb
  • Tensile Strength: 9,040 lb
  • Pitch: 1.5"
  • Pin Length (In.): 1.225
  • Pin Link Plate Thickness: 0.677 in
  • Width Between Roller Link Plates: 0.5 in
  • Tensile Strength (Lb.): 9040
  • Country of Origin (subject to change): Japan
Feedback Help us improve our product information

Description

Roller Attachment Link, A-2 Heavy Conveyor, Industry Chain Size C2062H, Carbon Steel Chain Link Material, Industry Chain Pitch 1 1/2 in, Chain Link Overall Width 1.225 in, Chain Roller Dia. 0.875 in, Width Between Roller Link Plates 0.5 in, Roller Link Plate Height 0.677 in, Connecting End to Center Line 0.652 in, Rivet End to Center Line 0.573 in, Pin Length 1.225 in, Inside Pin Dia. 0.234 in, Outside Pin Dia. 0.234 in, Pin Link Plate Thickness 0.677 in, Riveted Pin Type

Restrictions and Compliance

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
