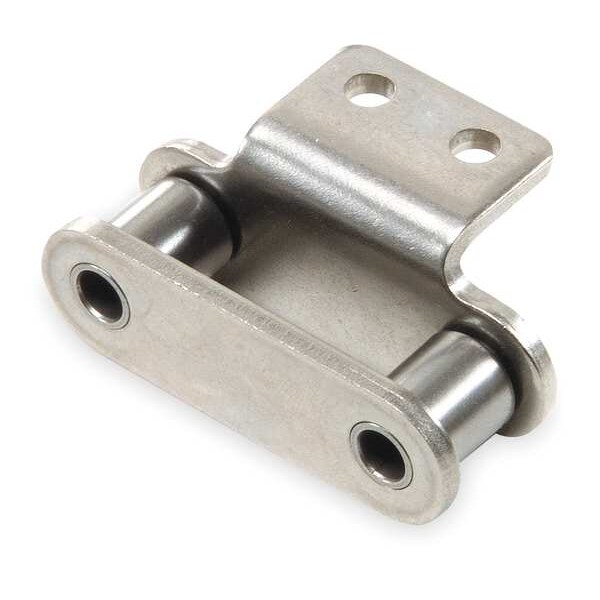

Tsubaki Roller Link, Double Pitch C2080HASA2RL - main

Roller Link, Double Pitch

  • Mfr # C2080HASA2RL

  • Zoro # G0712862

product price: $54.59
/ea

Key Features

Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
A-2 Heavy Conveyor
Industry Chain Size
C2080H
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C2080HASA2RL
Zoro #
G0712862
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2080H
Chain Link Overall Width
1.543 in
Chain Roller Dia.
0.625 in
Pin Link Plate Thickness
0.906 in
ANSI Chain Size
C2080HAS
Roller Link Plate Height
0.906 in
Roller Link Plate Height (In.)
0.906
Inside Pin Dia.
0.312 in
Outside Pin Dia. (In.)
0.312
Width Between Roller Link Plates
0.625 in
Width Between Roller Link Plates (In.)
0.625
Outside Pin Dia.
0.312 in
Pin Length (In.)
1.543
Overall Width (In.)
1.543
Length (In.)
2.000
Roller Dia. (In.)
0.625
Pin Length
1.543 in
Pin Link Plate Thickness (In.)
0.906
Plate Height
0.906 in
Chain Overall Width
1.543 in
Extended Pin Diameter
0.312 in
Plate Thickness
0.625 in
Roller Diameter
5/8 in

Details

Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
A-2 Heavy Conveyor
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
2 in
Number of Strands
Single
Temp. Range
-40 Degrees to 750 Degrees F
Material
Stainless Steel
Rivet End to Center Line
0.72 in
Max. Allowable Load
2,400 lb
Item
Roller Attachment Link
Agency Compliance
American National Standards Institute (ANSI)
Connecting End to Center Line (In.)
0.823
Lubrication
SAE 10 to SAE 50
Type
A-2 Attachment
Pin Type
Cottered
Tensile Strength (Lb.)
15,400
Connecting End to Center Line
0.823 in
Max. Allowable Load (Lb.)
2400
Pitch
2 in
Tensile Strength
15,400 lb/in
Rivet End to Center Line (In.)
0.720
Finish
Plain
Material Grade
600
Attachment Number
A-2
Pin Contruction
Cottered Pin
Chain Number
C2080H
Link Type
Roller Attachment Link
Centerline to Attachment End
0.823 in
Attachment Type
Tab
Standards
ANSI
Centerline to Hole Center
0.72 in
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
750 Degrees F
Number of Tab Holes
1

Description

Roller Attachment Link, Attachment Number A-2, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 1.543 in, Chain Number C2080H, Roller Diameter 5/8 in, Finish Plain, Pitch 2 in, Link Type Roller Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F, Minimum Operating Temperature -40 Degrees F, Number of Tab Holes 1
