Roller Link, Double Pitch
Mfr # C2080HASSA1RL
Zoro # G3309686
product price: $55.89
/eaKey Features
Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
SA-1 Heavy Conveyor
Industry Chain Size
C2080H
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
C2080HASSA1RL
Zoro #
G3309686
UPC #
-
Country of Origin
Japan
Dimensions
Industry Chain Size
C2080H
Chain Link Overall Width
1.543 in
Chain Roller Dia.
0.625 in
Inside Pin Dia.
0.312 in
Width Between Roller Link Plates
0.625 in
Pin Length
1.543 in
Roller Link Plate Height
0.906 in
Pin Link Plate Thickness (In.)
0.906
Outside Pin Dia. (In.)
0.312
ANSI Chain Size
C2080HAS
Overall Width (In.)
1.543
Length (In.)
2.000
Pin Link Plate Thickness
0.906 in
Width Between Roller Link Plates (In.)
0.625
Outside Pin Dia.
0.312 in
Roller Link Plate Height (In.)
0.906
Pin Length (In.)
1.543
Roller Dia. (In.)
0.625
Extended Pin Diameter
0.312 in
Plate Height
0.906 in
Chain Overall Width
1.543 in
Plate Thickness
0.625 in
Roller Diameter
5/8 in
Description

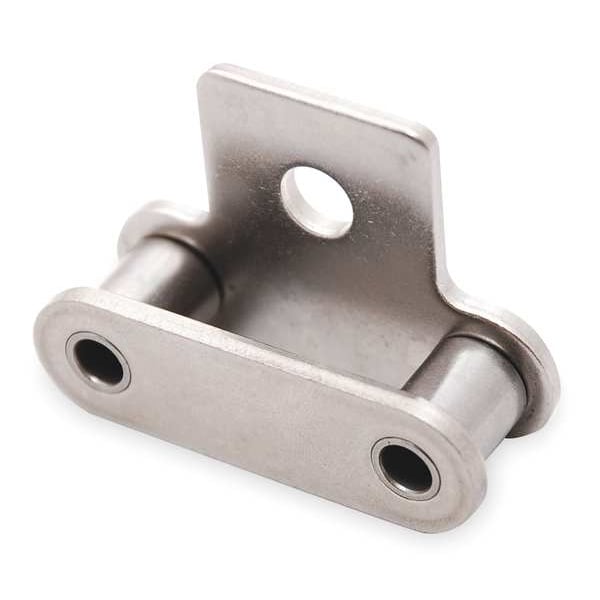

Roller Attachment Link, Attachment Number SA-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 1.543 in, Chain Number C2080H, Roller Diameter 5/8 in, Finish Plain, Pitch 2 in, Link Type Roller Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F, Minimum Operating Temperature -40 Degrees F, Number of Tab Holes 1
