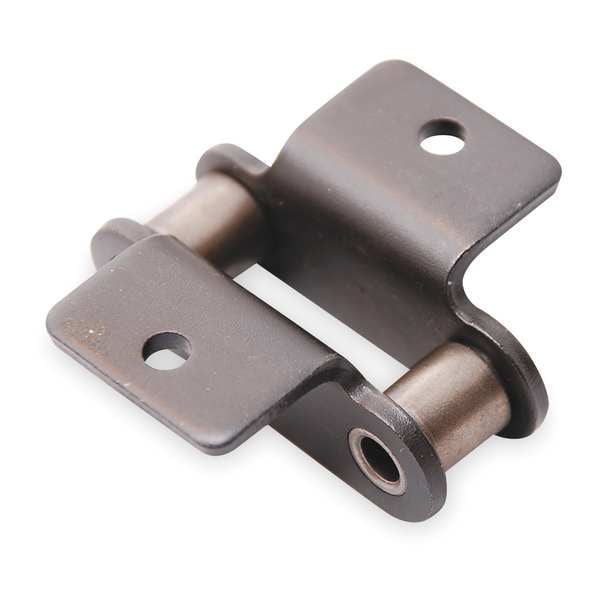

Tsubaki Roller Link, Double Pitch C2080HLK1RL - main

Roller Link, Double Pitch

  • Mfr # C2080HLK1RL

  • Zoro # G2945311

product price: $35.29
/ea

Key Features

Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
K-1 Lube Free Heavy Conveyor
Industry Chain Size
C2080H
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C2080HLK1RL
Zoro #
G2945311
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2080H
Chain Link Overall Width
1.543 in
Chain Roller Dia.
0.625 in
Roller Link Plate Height
0.906 in
Outside Pin Dia. (In.)
0.312
ANSI Chain Size
C2080HL
Pin Length (In.)
1.543
Pin Length
1.543 in
Outside Pin Dia.
0.312 in
Roller Dia. (In.)
0.625
Width Between Roller Link Plates
0.625 in
Overall Width (In.)
1.543
Length (In.)
2.000
Roller Link Plate Height (In.)
0.906
Pin Link Plate Thickness (In.)
0.906
Width Between Roller Link Plates (In.)
0.625
Inside Pin Dia.
0.312 in
Pin Link Plate Thickness
0.906 in
Plate Thickness
0.625 in
Plate Height
0.906 in
Extended Pin Diameter
0.312 in
Chain Overall Width
1.543 in
Roller Diameter
5/8 in

Details

Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
K-1 Lube Free Heavy Conveyor
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
Number of Strands
Single
Tensile Strength
15,400 lb/in
Material
Steel
Rivet End to Center Line
0.72 in
Pitch
2 in
Rivet End to Center Line (In.)
0.720
Connecting End to Center Line (In.)
0.823
Pin Type
Cottered
Max. Allowable Load (Lb.)
2400
Lubrication
Self Lube
Finish
Black Oxide
Item
Roller Attachment Link
Temp. Range
14 Degrees to 302 Degrees F
Connecting End to Center Line
0.823 in
Type
K-1 Attachment
Tensile Strength (Lb.)
15,400
Max. Allowable Load
2,400 lb
Agency Compliance
American National Standards Institute (ANSI)
Minimum Operating Temperature
14 Degrees F
Chain Number
C2080H
Number of Tab Holes
1
Attachment Type
Tab
Standards
ANSI
Pin Contruction
Cottered Pin
Link Type
Roller Attachment Link
Attachment Number
K-1
Centerline to Hole Center
0.72 in
Centerline to Attachment End
0.823 in
Maximum Operating Temperature
302 Degrees F

Description

Roller Attachment Link, Attachment Number K-1, Attachment Type Tab, Material Steel, Chain Overall Width 1.543 in, Chain Number C2080H, Roller Diameter 5/8 in, Finish Black Oxide, Pitch 2 in, Link Type Roller Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication Self Lube, Maximum Operating Temperature 302 Degrees F, Minimum Operating Temperature 14 Degrees F, Number of Tab Holes 1, Pin Contruction Cottered Pin
