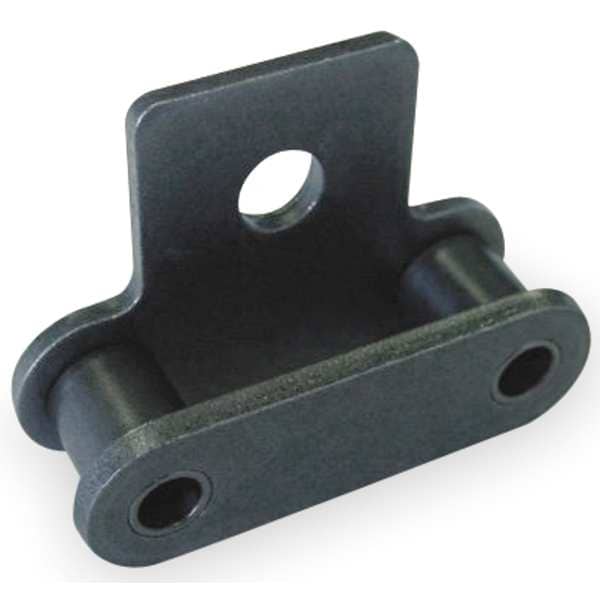

Tsubaki Roller Link, Double Pitch C2080HLSA1RL - main

Roller Link, Double Pitch

  • Mfr # C2080HLSA1RL

  • Zoro # G1951135

product price: $31.99
/ea

Key Features

Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
SA-1 Lube Free Heavy Conveyor
Industry Chain Size
C2080H
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C2080HLSA1RL
Zoro #
G1951135
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2080H
Chain Link Overall Width
1.543 in
Chain Roller Dia.
0.625 in
ANSI Chain Size
C2080HL
Pin Link Plate Thickness (In.)
0.906
Roller Link Plate Height
0.906 in
Pin Length
1.543 in
Pin Length (In.)
1.543
Overall Width (In.)
1.543
Outside Pin Dia. (In.)
0.312
Inside Pin Dia.
0.312 in
Roller Dia. (In.)
0.625
Length (In.)
2.000
Roller Link Plate Height (In.)
0.906
Outside Pin Dia.
0.312 in
Pin Link Plate Thickness
0.906 in
Width Between Roller Link Plates (In.)
0.625
Width Between Roller Link Plates
0.625 in
Extended Pin Diameter
0.312 in
Roller Diameter
5/8 in
Chain Overall Width
1.543 in
Plate Height
0.906 in
Plate Thickness
0.625 in

Details

Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
SA-1 Lube Free Heavy Conveyor
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
Number of Strands
Single
Rivet End to Center Line
0.72 in
Lubrication
Self Lube
Material
Steel
Finish
Black Oxide
Max. Allowable Load
2,400 lb
Connecting End to Center Line
0.823 in
Temp. Range
14 Degrees to 302 Degrees F
Rivet End to Center Line (In.)
0.720
Connecting End to Center Line (In.)
0.823
Max. Allowable Load (Lb.)
2400
Tensile Strength (Lb.)
15,400
Type
SA-1 Attachment
Pin Type
Cottered
Agency Compliance
American National Standards Institute (ANSI)
Item
Roller Attachment Link
Pitch
2 in
Tensile Strength
15,400 lb/in
Centerline to Hole Center
0.72 in
Chain Number
C2080H
Standards
ANSI
Attachment Number
SA-1
Minimum Operating Temperature
14 Degrees F
Maximum Operating Temperature
302 Degrees F
Attachment Type
Tab
Number of Tab Holes
1
Centerline to Attachment End
0.823 in
Pin Contruction
Cottered Pin
Link Type
Roller Attachment Link

Description

Roller Attachment Link, Attachment Number SA-1, Attachment Type Tab, Material Steel, Chain Overall Width 1.543 in, Chain Number C2080H, Roller Diameter 5/8 in, Finish Black Oxide, Pitch 2 in, Link Type Roller Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication Self Lube, Maximum Operating Temperature 302 Degrees F, Minimum Operating Temperature 14 Degrees F, Number of Tab Holes 1, Pin Contruction Cottered Pin
