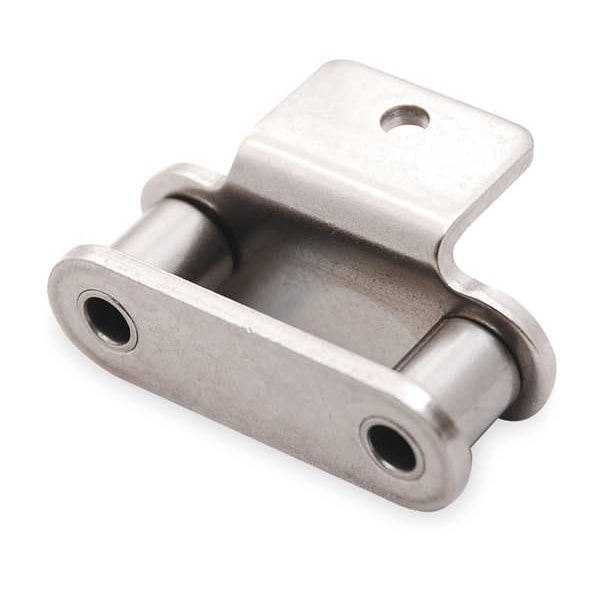

Tsubaki Roller Link, Double Pitch C2082HASA1RL - main

Roller Link, Double Pitch

  • Mfr # C2082HASA1RL

  • Zoro # G1934843

product price: $94.19
/ea
Free Shipping & Returns

Key Features

Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
A-1 Heavy Conveyor
Industry Chain Size
C2082H
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C2082HASA1RL
Zoro #
G1934843
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2082H
Chain Link Overall Width
1.543 in
Chain Roller Dia.
1.125 in
Pin Link Plate Thickness
0.906 in
Width Between Roller Link Plates (In.)
0.625
Roller Link Plate Height (In.)
0.906
Roller Dia. (In.)
1.125
Width Between Roller Link Plates
0.625 in
Roller Link Plate Height
0.906 in
Pin Length (In.)
1.543
Length (In.)
2.000
Pin Length
1.543 in
ANSI Chain Size
C2082HAS
Outside Pin Dia. (In.)
0.312
Outside Pin Dia.
0.312 in
Pin Link Plate Thickness (In.)
0.906
Inside Pin Dia.
0.312 in
Overall Width (In.)
1.543
Plate Height
0.906 in
Plate Thickness
0.625 in
Chain Overall Width
1.543 in
Roller Diameter
1 1/8 in
Extended Pin Diameter
0.312 in

Details

Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
A-1 Heavy Conveyor
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
2 in
Number of Strands
Single
Rivet End to Center Line
0.72 in
Temp. Range
-40 Degrees to 750 Degrees F
Max. Allowable Load
2,400 lb
Item
Roller Attachment Link
Rivet End to Center Line (In.)
0.720
Pin Type
Cottered
Max. Allowable Load (Lb.)
2400
Agency Compliance
American National Standards Institute (ANSI)
Connecting End to Center Line
0.823 in
Lubrication
SAE 10 to SAE 50
Type
A-1 Attachment
Pitch
2 in
Material
Stainless Steel
Tensile Strength
15,400 lb/in
Tensile Strength (Lb.)
15,400
Connecting End to Center Line (In.)
0.823
Finish
Plain
Pin Contruction
Cottered Pin
Attachment Number
A-1
Centerline to Hole Center
0.72 in
Link Type
Roller Attachment Link
Standards
ANSI
Maximum Operating Temperature
750 Degrees F
Material Grade
600
Centerline to Attachment End
0.823 in
Attachment Type
Tab
Number of Tab Holes
1
Minimum Operating Temperature
-40 Degrees F
Chain Number
C2082H

Description

Roller Attachment Link, Attachment Number A-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 1.543 in, Chain Number C2082H, Roller Diameter 1 1/8 in, Finish Plain, Pitch 2 in, Link Type Roller Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F, Minimum Operating Temperature -40 Degrees F, Number of Tab Holes 1
