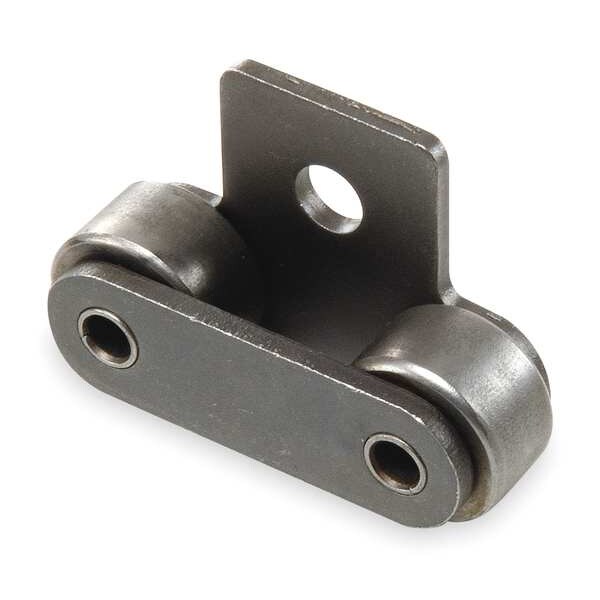

Tsubaki Roller Link, Double Pitch C2082HSA1RL - main

Roller Link, Double Pitch

  • Mfr # C2082HSA1RL

  • Zoro # G3390563

product price: $26.29
/ea

Key Features

Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
SA-1 Heavy Conveyor
Industry Chain Size
C2082H
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C2082HSA1RL
Zoro #
G3390563
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2082H
Chain Link Overall Width
1.543 in
Chain Roller Dia.
1.125 in
Outside Pin Dia.
0.312 in
Width Between Roller Link Plates
0.625 in
ANSI Chain Size
C2082H
Pin Link Plate Thickness
0.906 in
Length (In.)
2.000
Outside Pin Dia. (In.)
0.312
Roller Dia. (In.)
1.125
Pin Length
1.543 in
Width Between Roller Link Plates (In.)
0.625
Roller Link Plate Height
0.906 in
Inside Pin Dia.
0.312 in
Overall Width (In.)
1.543
Pin Length (In.)
1.543
Roller Link Plate Height (In.)
0.906
Pin Link Plate Thickness (In.)
0.906
Roller Diameter
1 1/8 in
Plate Thickness
0.625 in
Chain Overall Width
1.543 in
Extended Pin Diameter
0.312 in
Plate Height
0.906 in

Details

Roller Chain Link Item
Roller Attachment Link
Roller Chain Link Type
SA-1 Heavy Conveyor
Chain Link Material
Carbon Steel
Industry Chain Pitch
2 in
Number of Strands
Single
Connecting End to Center Line (In.)
0.823
Max. Allowable Load
2,400 lb
Connecting End to Center Line
0.823 in
Rivet End to Center Line
0.72 in
Pin Type
Cottered
Pitch
2 in
Max. Allowable Load (Lb.)
2400
Tensile Strength
15,400 lb/in
Tensile Strength (Lb.)
15,400
Agency Compliance
American National Standards Institute (ANSI)
Lubrication
SAE 10 to SAE 50
Temp. Range
15 Degrees to 300 Degrees F
Rivet End to Center Line (In.)
0.720
Material
Steel
Type
SA-1 Attachment
Item
Roller Attachment Link
Finish
Plain
Attachment Number
SA-1
Number of Tab Holes
1
Attachment Type
Tab
Minimum Operating Temperature
15 Degrees F
Chain Number
C2082H
Link Type
Roller Attachment Link
Standards
ANSI
Centerline to Attachment End
0.823 in
Centerline to Hole Center
0.72 in
Pin Contruction
Cottered Pin
Maximum Operating Temperature
300 Degrees F

Description

Roller Attachment Link, Attachment Number SA-1, Attachment Type Tab, Material Steel, Chain Overall Width 1.543 in, Chain Number C2082H, Roller Diameter 1 1/8 in, Finish Plain, Pitch 2 in, Link Type Roller Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Cottered Pin
