Shop TSUBAKI

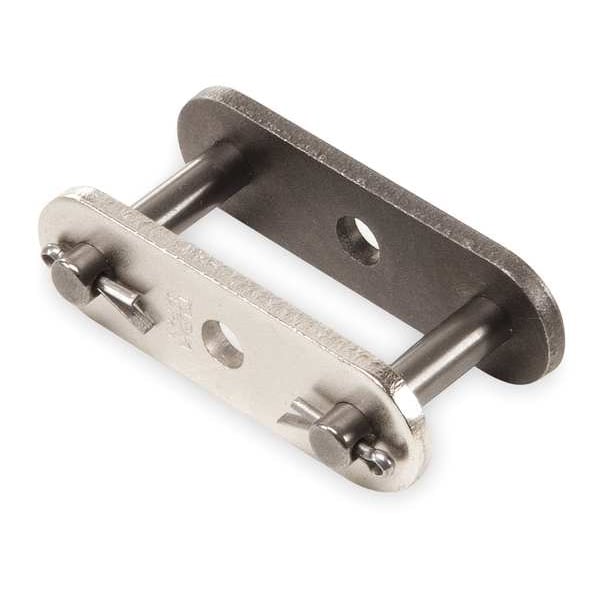

Roller Link, Double Pitch, GK-1 Attachment

  • Mfr # C2060HGK1CL

  • Zoro # G1791797

product price:  $14.69
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
GK-1 Heavy Conveyor
Industry Chain Size
C2060H
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C2060HGK1CL
Zoro #
G1791797
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2060H
Chain Link Overall Width
1.225 in
Chain Roller Dia.
0.469 in
Roller Link Plate Height (In.)
0.713
Width Between Roller Link Plates (In.)
0.500
Pin Length
1.225 in
Pin Link Plate Thickness (In.)
0.125
Inside Pin Dia.
0.234 in
Roller Link Plate Height
0.713 in
Pin Length (In.)
1.225
Width Between Roller Link Plates
0.5 in
Length (In.)
1.500
Outside Pin Dia.
0.234 in
Pin Link Plate Thickness
0.125 in
ANSI Chain Size
C2060H
Roller Dia. (In.)
0.469
Outside Pin Dia. (In.)
0.234
Overall Width (In.)
1.225
Chain Overall Width
1.225 in
Plate Height
0.713 in
Plate Thickness
0.5 in
Roller Diameter
15/32 in
Extended Pin Diameter
0.234 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
GK-1 Heavy Conveyor
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 1/2 in
Number of Strands
Single
Connecting End to Center Line
0.652 in
Rivet End to Center Line (In.)
0.573
Material
Steel
Rivet End to Center Line
0.573 in
Tensile Strength (Lb.)
9040
Pitch
1 1/2 in
Tensile Strength
9,040 lb/in
Temp. Range
14 Degrees to 140 Degrees F
Agency Compliance
American National Standards Institute (ANSI)
Lubrication
SAE 10 to SAE 50
Max. Allowable Load (Lb.)
1410
Max. Allowable Load
1,410 lb
Item
Attachment Link
Connecting End to Center Line (In.)
0.652
Pin Type
Riveted
Type
GK-1 Attachment
Finish
Plain
Chain Number
C2060H
Centerline to Attachment End
0.652 in
Centerline to Hole Center
0.573 in
Maximum Operating Temperature
140 Degrees F
Attachment Number
WSK-1
Pin Contruction
Riveted Pin
Number of Tab Holes
1
Link Type
Attachment
Minimum Operating Temperature
14 Degrees F
Standards
ANSI
Attachment Type
Wide Contour Tab

Description

Attachment Link, Attachment Number WSK-1, Attachment Type Wide Contour Tab, Material Steel, Chain Overall Width 1.225 in, Chain Number C2060H, Roller Diameter 15/32 in, Finish Plain, Pitch 1 1/2 in, Link Type Attachment, Centerline to Attachment End 0.652 in, Centerline to Hole Center 0.573 in, Extended Pin Diameter 0.234 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
