Tsubaki

Roller Link, SA-1 Attachment, PK5

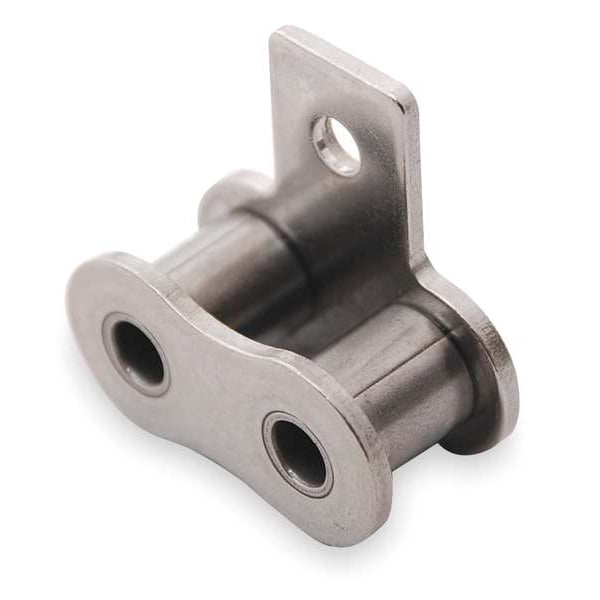

Tsubaki Roller Link, SA-1 Attachment, PK5 50NPSA1RL
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$34.00 ($6.80/unit)
  • Roller Chain Link Item: Roller Attachment Link
  • Roller Chain Link Type: SA-1
  • Industry Chain Size: 50
See full product details
Orders over $75 ship free.
Total: $34.00

Tsubaki #50NPSA1RL Specifications

  • Roller Chain Link Item: Roller Attachment Link
  • Roller Chain Link Type: SA-1
  • Industry Chain Size: 50
  • Chain Link Material: Nickel Plated Steel
  • Industry Chain Pitch: 5/8 in
  • Number of Strands: Single
  • Chain Link Overall Width: 0.878 in
  • Chain Roller Dia.: 0.4 in
  • Length (In.): 0.625
  • Inside Pin Dia.: 0.2 in
  • Type: SA-1 Attachment
  • ANSI Chain Size: 50NP
  • Width Between Roller Link Plates: 0.375 in
  • Pin Type: Riveted
  • Tensile Strength: 6,170 lb
  • Lubrication: SAE 10 to SAE 50
  • Connecting End to Center Line (In.): 0.472
  • Rivet End to Center Line (In.): 0.406
  • Max. Allowable Load: 970 lb
  • Item: Roller Attachment Link
  • Roller Dia. (In.): 0.400
  • Pin Link Plate Thickness (In.): 0.080
  • Rivet End to Center Line: 0.406 in
  • Material: Nickel Plated
  • Pitch: 0.625"
  • Agency Compliance: American National Standards Institute (ANSI)
  • Pin Length (In.): 0.878
  • Tensile Strength (Lb.): 6170
  • Temp. Range: 14 Degrees to 302 Degrees F
  • Outside Pin Dia. (In.): 0.200
  • Overall Width (In.): 0.878
  • Roller Link Plate Height (In.): 0.591
  • Roller Link Plate Height: 0.591 in
  • Width Between Roller Link Plates (In.): 0.375
  • Pin Link Plate Thickness: 0.08 in
  • Max. Allowable Load (Lb.): 970
  • Pin Length: 0.878 in
  • Outside Pin Dia.: 0.2 in
  • Connecting End to Center Line: 0.472 in
  • Country of Origin (subject to change): Japan
Feedback Help us improve our product information

Description

Roller Attachment Link, SA-1, Industry Chain Size 50, Nickel Plated Steel Chain Link Material, Industry Chain Pitch 5/8 in, Chain Link Overall Width 0.878 in, Chain Roller Dia. 0.4 in, Width Between Roller Link Plates 0.375 in, Roller Link Plate Height 0.591 in, Connecting End to Center Line 0.472 in, Rivet End to Center Line 0.406 in, Pin Length 0.878 in, Inside Pin Dia. 0.2 in, Outside Pin Dia. 0.2 in, Pin Link Plate Thickness 0.08 in, Riveted Pin Type, Max. Allowable Load 970 lb
