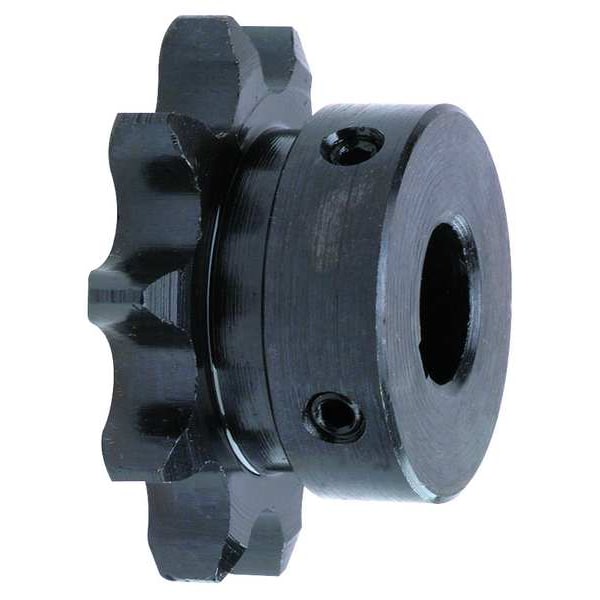

Single Strand Sprocket, Fixed, 40 Chain Size, 1/2 Bore Dia., 14 # of Teeth
Mfr # 40B14F-1/2
Zoro # G2493766
product price:Â $23.69
/eaKey Features
Material
Steel
Number of Teeth
14
Bore Type
Fixed
Bore Dia. (In.)
1/2
Includes
Set Screws
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 40B14F-1/2
- Zoro #
- G2493766
- UPC #
- -
- Country of Origin
- China
Dimensions
- Bore Dia. (In.)
- 1/2
- Outside Dia.
- 2 in
- Pitch Dia.
- 2.247 in
- Bore Dia. - Sprockets
- 1/2 in
- Set Screw Size
- 5/64"
- Industry Chain Size
- 40
- Length through Bore
- 7/8 in
- Pitch Dia. (In.)
- 2.247
- Outside Dia. (In.)
- 2.490
- Keyseat Size (In.)
- 1/8 x 1/16
- Hub Diameter
- 1 11/16 in
- Bore Diameter
- 1/2 in
- Pitch Diameter
- 2.247 in
- Outside Diameter
- 2.49 in
- Tooth Width
- 0.284 in
- Maximum Bore Diameter
- 1/2 in
Description
Single Strand Sprocket, Bore Diameter 1/2 in, For Chain Pitch 1/2 in, For Number of Strands Single, Hub Type One Side, Material Steel, Maximum Bore Diameter 1/2 in, Number of Teeth 14, Outside Diameter 2.49 in, Pitch Diameter 2.247 in, Bore Type Fixed, Chain Number 40, Finish Black Oxide, For Pitch Type Single Pitch, Hub Diameter 1 11/16 in, Hub Projection 0.591 in, Includes Set Screws, Keyway No, Keyway Depth Not Applicable, Keyway Width Not Applicable, Length through Bore 7/8 in
