Shop TSURUMI

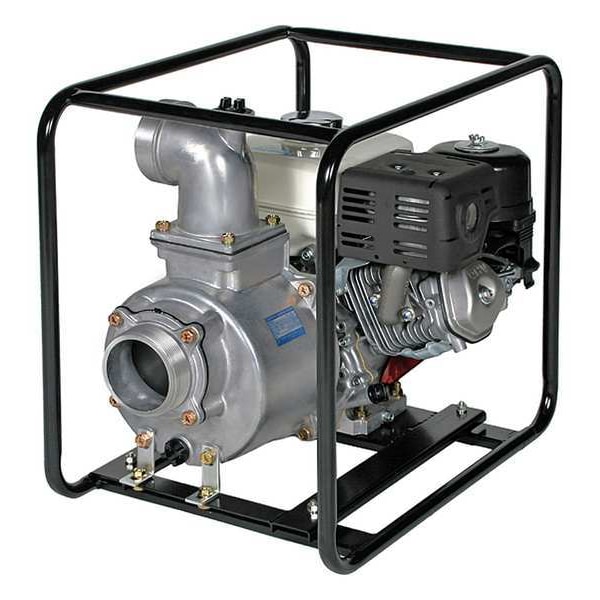

4" 8 HP Honda Powered Centrifugal Dewatering Pump

  • Mfr # TE2-100HA

  • Zoro # G6753126

product price:
$
2,060.00
/ea
Free Shipping & Returns

Key Features

Tank Capacity
1.59 gal
GPM of Water @ 50 Ft. of Head
225
GPM of Water @ 20 Ft. of Head
387
Impeller Material
Cast Iron
GPM of Water @ 90 Ft. of Head
45
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TE2-100HA
Zoro #
G6753126
UPC #
-
Country of Origin
Japan

Dimensions

Length
25 in
Height
23-1/2"
Engine Size
242 cc
Width
18"
Overall Length
25 in
Overall Width
18 in
Max. Diameter Solids
3/8 in
Inlet Dia.
4 in
Discharge Dia.
4 in
Overall Height
23 1/2 in
Inlet Diameter
4 in
Manufacturers Warranty Length
2 yr
Solids Diameter - Maximum
3/8 in
Discharge Diameter
4 in
Wire Rope Length
25 in

Details

Tank Capacity
1.59 gal
GPM of Water @ 50 Ft. of Head
225
GPM of Water @ 20 Ft. of Head
387
Impeller Material
Cast Iron
GPM of Water @ 90 Ft. of Head
45
Roll Bar Frame
Steel
GPM of Water @ 40 Ft. of Head
280
Material of Construction
Aluminum, Cast Iron
GPM of Water @ 100 Ft. of Head
25
Mechanical Seal
Silicon Carbide
Self-Priming
Yes
GPM of Water @ 60 Ft. of Head
175
Application
Dewatering
Solids Handling Capacity
3/8"
Max. Head
95 ft
Sensor Type
Low Oil
GPM of Water @ 10 Ft. of Head
432
Max. Pressure
41 psi
Temp. Range
33 Degrees to 104 Degrees F
Impeller Type
Semi Open
Ignition Type
Recoil-Start
HP
8 hp
GPM of Water @ 80 Ft. of Head
75
Item
Engine Driven Pump
Engine Brand
Honda
Agency Compliance
EPA/CARB
Inlet
4 in MNPT
Volute/Wear Plate
Cast Iron
Max. Suction Lift
26 ft
Includes
Impeller Wrench
Casing Adapter
Aluminum
Check Valve
Buna-N
Engine RPM
3600
GPM of Water @ 30 Ft. of Head
342
Engine/Motor Type
Gas
GPM of Water @ 70 Ft. of Head
125
Outlet
4" NPT
Flow Rate @ 80 Ft. of Head
75 gpm
Frame Material
Steel
Inlet Standard
NPT
Flow Rate @ 60 Ft. of Head
175 gpm
Impeller Design
Semi-Open
Power Source
Gas Engine
Max. Liquid Temp.
104 Degrees F
Body Material
Cast Iron
Flow Rate @ 10 Ft. of Head
432 gpm
RPM
3,600 RPM
Pump Mechanism
Centrifugal
Discharge Gender
Male
Inlet Gender
Male
Frame Design
Roll Cage
Discharge
4 in MNPT
Maximum Self-Priming Lift
20 ft
Flow Rate @ 40 Ft. of Head
280 gpm
Discharge Standard
NPT
Maximum Discharge Pressure
41 psi
Flow Rate @ 20 Ft. of Head
387 gpm
Volute Material
Cast Iron
Frame Design - Pumps
Full Tubular Frame
Standards
EPA/CARB
Seal Material
Silicon
Self-Priming Lift - Maximum
20 ft
Series
TE
Suction Lift - Maximum
26 ft
Engine Series
GX240
Feet of Head - Maximum
95 ft
Discharge Pressure - Maximum
41 psi
Rotation Speed - Maximum
3,600 RPM
Horsepower
8 hp
Liquid Temperature - Maximum
104 Degrees F
Flow Rate @ 20 ft of Head
387 gpm
Flow Rate @ 10 ft of Head
432 gpm
For Media Type
Clear Water
Power Source - TS Only
Gas Engine
Power Source - old
Gas Engine

Description

Engine Driven Pump, Engine Size 242 cc, HP 8 hp, Tank Capacity 1.59 gal, Ignition Type Recoil-Start, Pump Mechanism Centrifugal, Body Material Cast Iron, Volute Material Cast Iron, Seal Material Silicon, Frame Material Steel, Flow Rate @ 10 Ft. of Head 432 gpm, Flow Rate @ 20 Ft. of Head 387 gpm, Flow Rate @ 40 Ft. of Head 280 gpm, Flow Rate @ 60 Ft. of Head 175 gpm, Flow Rate @ 80 Ft. of Head 75 gpm, Max. Head 95 ft, Max. Suction Lift 26 ft, Maximum Self-Priming Lift 20 ft
